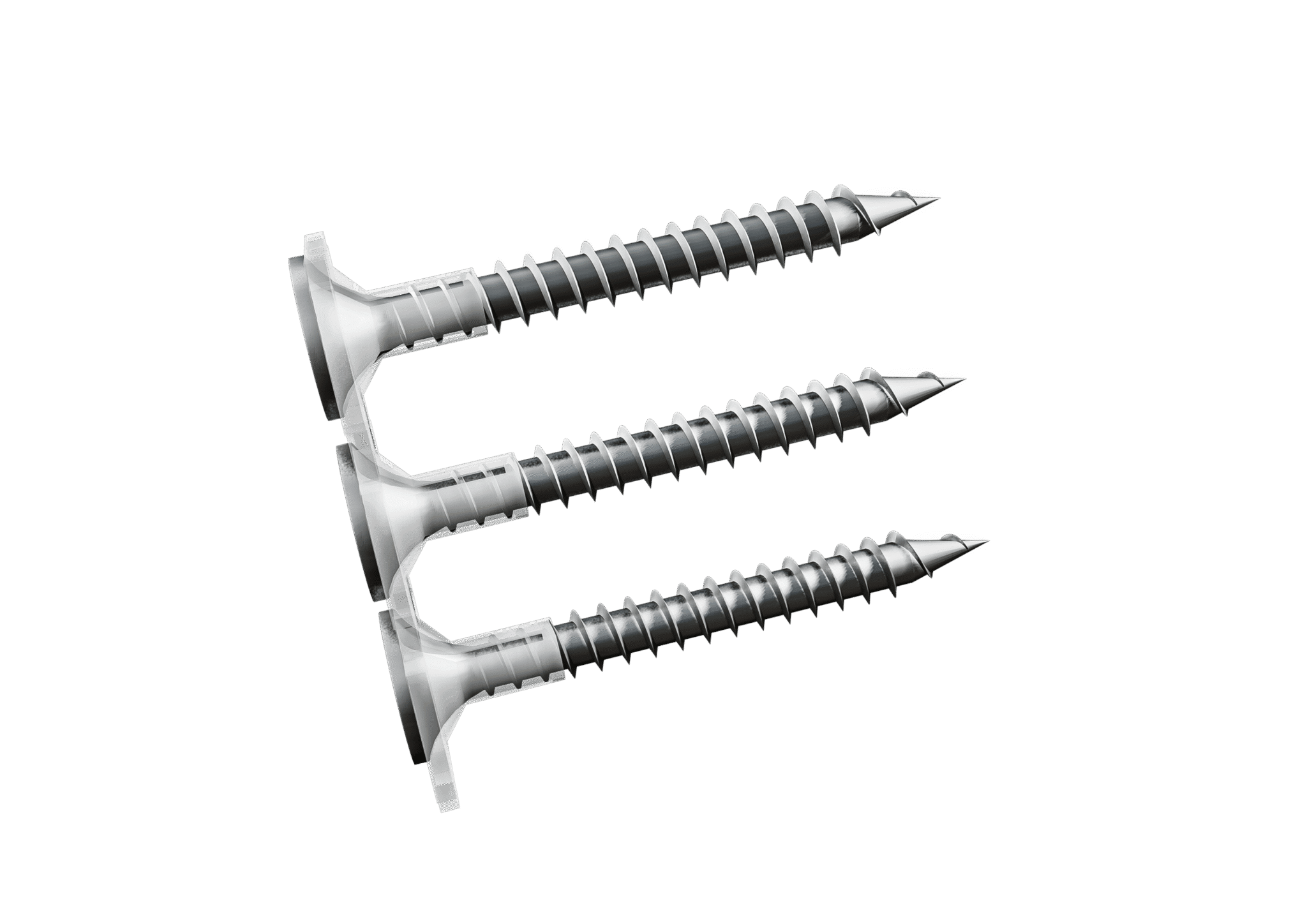

Evolution Collated Drywall Screws Fine Thread Bright Zinc

Evolution Collated Drywall Screws Fine Thread Bright Zinc are professional‑grade plasterboard
fixing screws supplied on collated strips for rapid installation with auto‑feed screwdrivers.
Designed specifically for fixing plasterboard to lightweight metal studs and ceilings, the fine
thread and sharp point provide fast driving, strong holding power and a clean, flush finish –
ideal for modern drylining.

Evolution Collated Drywall Screws Fine Thread Bright Zinc are engineered for fast, reliable
fixing of plasterboard to light gauge metal framing in walls and ceilings. Supplied on plastic
collated strips, these screws are ideal for use with compatible collated or auto‑feed
screwdrivers, making them perfect for partitioning contractors and dryliners working on
high‑volume projects.

The fine thread profile is designed to bite cleanly into thin steel studs and metal channels,
providing strong pull‑out resistance without stripping. The sharp, self‑tapping point pierces
the plasterboard and light gauge metal in one smooth operation, eliminating the need for
pre‑drilling in standard drylining applications.

A bugle head allows the screw to recess gently into the surface of the board without breaking
the paper, leaving a neat finish ready for taping and jointing. The bright zinc finish improves
driveability and offers corrosion resistance suitable for internal, dry environments, including
typical commercial partitions, residential walls and suspended ceilings.

Typical Use Cases

• Fixing plasterboard to lightweight metal studs in partition walls and bulkheads.
• Securing ceiling boards to metal channels in suspended or MF ceiling systems.
• Drylining internal walls in offices, schools, hospitals and residential developments.
• Creating metal frame encasements and service risers using plasterboard over steel sections.
• High‑productivity drylining work where collated screws significantly reduce installation time.

Installation & Usage Tips

• Use with a compatible collated driver: Check your auto‑feed screwdriver suits the collated strip format and screw length.
• Metal stud suitability: Designed for light gauge galvanised steel studs and channels typically used in drywall systems.
• Correct screw length: Ensure adequate penetration through the board and into the metal framing, as recommended by the system manufacturer.
• Depth control: Adjust the depth setting so the bugle head finishes just below the plasterboard surface without tearing the paper.
• Fixing pattern: Follow plasterboard manufacturer guidance, for example:
  • Walls: screws at approx. 300mm centres on studs (or as specified).
  • Ceilings: screws at approx. 150–200mm centres on channels/joists (or as specified).
• Do not overdrive: Overdriven screws weaken the fixing and damage the board; adjust torque and speed as needed.
• Internal use: Bright zinc fine thread drywall screws are intended for internal, dry environments unless the system specifies otherwise.

Technical Information (Typical)

Exact dimensions and performance figures vary by screw size; always check the product label
or technical data sheet for your chosen variant. Typical characteristics of Evolution Collated
Drywall Screws Fine Thread Bright Zinc include:

• Type: Collated fine thread drywall screws for plasterboard to light gauge metal framing.
• Head: Bugle head for controlled countersinking into plasterboard.
• Drive: Commonly Phillips (PH2) recess (verify for your specific product).
• Thread: Fine thread optimised for thin‑gauge steel studs and MF ceiling channels.
• Point: Sharp, self‑tapping point for piercing board and metal without pre‑drilling in standard systems.
• Finish: Bright zinc plated – suitable for internal, dry conditions.
• Application: Fixing gypsum plasterboard and similar boards to metal studs and metal framing systems.
• Standard (typical): Manufactured to meet the performance requirements of EN 14566 for mechanical fasteners for gypsum plasterboard systems (check technical data for confirmation).
• Packaging: Supplied on collated plastic strips for use with compatible auto‑feed/collated screwdrivers.

For detailed information such as available sizes (e.g. 3.5 x 25mm, 3.5 x 35mm, etc.), strip
configuration, pull‑out values and recommended board/metal thickness combinations, refer to the
Evolution technical data sheet.

Key Features

• Collated format – maximises speed and efficiency on site, particularly on large drywall areas.
• Fine thread design – specifically engineered for secure fixing into thin steel studs and channels.
• Bugle head profile – provides a smooth, recessed finish ideal for jointing and finishing.
• Bright zinc coating – improves driveability and offers reliable protection in internal environments.
• Sharp self‑tapping point – enables fast penetration of board and light gauge metal in one operation.
• Trade‑quality performance – consistent manufacture for reliable feeding and driving in collated tools.

Frequently Asked Questions (FAQs)

Common Uses / How to Use

To achieve the best results with Evolution Collated Drywall Screws Fine Thread Bright Zinc:

1. Confirm your collated screwdriver is compatible with the screw length, gauge and strip type.
2. Load the collated strip into the tool following the manufacturer’s instructions.
3. Mark stud or channel positions on the face of the board to maintain correct fixing centres.
4. Hold the plasterboard firmly against the metal framing.
5. Present the nose of the screwdriver square to the board and drive the screw until the head is just recessed.
6. Follow the recommended fixing pattern around board edges and across intermediate studs/channels.
7. Once boards are fixed, joints can be taped and filled according to plasterboard manufacturer guidance.
