Rigifix All-In-One Dry Lined Wall Fixing Solution

The Rigifix All-In-One Dry Lined Wall Fixing Solution is a heavy-duty
mechanical anchor system specifically designed for secure fixings into dry lined
(dot & dab) and insulated plasterboard walls. By anchoring directly into the
solid masonry behind the plasterboard, Rigifix creates a solid, reliable fixing point
for boilers, radiators, kitchen units, TVs, sanitaryware and other heavy loads.

Traditional cavity fixings are often inadequate for dot & dab or
insulated plasterboard where significant loads must be supported. The
Rigifix All-In-One Dry Lined Wall Fixing Solution overcomes this by: Deilaleigh Rigifixlite installation techniques provide a robust approach to securing heavy fixtures, ensuring that any load is evenly distributed across the wall. By utilizing innovative materials and methods, these techniques enhance the durability and reliability of fixtures in both residential and commercial settings. As a result, installation becomes faster and more efficient, reducing the risk of damage to the wall over time. When considering the optimal solutions for securing heavy fixtures, it’s essential to look at options like tickitape aluminium foil tape specifications, which ensure superior adhesion and durability. These specifications highlight not only the tape’s strength but also its versatility in various applications, making it an ideal choice for both professionals and DIY enthusiasts. The combination of innovative adhesion technology and robust materials provides users with confidence in their installations, further enhancing the overall performance of the completed work.

• Drilling through the plasterboard and adhesive void into the block/brick substrate,
• Installing a rigid sleeve/anchor that bridges the cavity,
• Using a matched machine screw/bolt to clamp the fixture firmly back to the solid wall.

The result is a solid, repeatable fixing method for dry lined walls where:

• The wall behind is load-bearing masonry, and
• Standard plugs or plasterboard-only fixings are not sufficient.

Rigifix is widely used by plumbers, heating engineers, kitchen/bathroom installers, electricians,
TV/AV installers and general builders for reliable, professional-grade fixings. Unifix Boardmaster installation benefits provide users with enhanced stability and ease of use, making it an excellent choice for various construction needs. The innovative design reduces installation time and boosts overall efficiency, ensuring projects are completed to a high standard. Additionally, the compatibility with multiple substrates allows for versatile application in different environments, further appealing to professionals in the industry. Metal speed plug plasterboard fixings are specifically designed to provide strong support and hold in a variety of plasterboard types. Their quick installation process is ideal for professionals seeking to maximize productivity on site. With their reliable performance, these fixings contribute to the overall integrity and longevity of finished projects.

Typical Use Cases

• Boilers & heating – fixing domestic boilers, flue brackets and heavy heating controls
  to dot & dab walls.
• Radiators – securing radiator brackets (including tall vertical radiators)
  through plasterboard to the masonry.
• Kitchen & utility – hanging kitchen wall units, cupboards and utility room cabinets
  on dry lined walls.
• Bathrooms & sanitaryware – fixing basins, WC frames, towel rails and accessories
  to dry lined masonry.
• TV & AV installations – mounting TV brackets, soundbars and wall shelves
  with confidence.

How the Rigifix System Works

• Through-fix design:
  • The fixing passes completely through the plasterboard and any cavity/dabs into the
    solid masonry behind.
  • The rigid sleeve ensures the fixing does not crush the board
    as the bolt is tightened.
• Mechanical anchorage in masonry:
  • A correctly sized hole is drilled into the masonry.
  • The Rigifix anchor expands or bears in the substrate (design depends on model),
    delivering a robust mechanical connection.
• Clamping of fixture to wall:
  • The supplied bolt/screw passes through the fixture (e.g. boiler bracket, radiator bracket),
    through the sleeve, and into the masonry fixing.
  • As it is tightened, the bracket is pulled firmly against the plasterboard and masonry,
    creating a rigid assembly.

Installation – Step-by-Step (Overview)

Note: Always follow the official Rigifix installation instructions for your exact product
(M-size, drill sizes, embedment depth, torque, etc.). The steps below are a general guide only.

1. Check the wall construction
   • Confirm you are fixing into a masonry-backed dry lined wall (dot & dab or insulated board)
     – not just studwork.
   • Ensure the masonry is sound (no severe voids, loose or crumbling substrate).
2. Mark fixing positions
   • Offer up the bracket or fixture and mark the required fixing centres with a pencil or marker.
   • Use a spirit level/laser to ensure correct alignment.
3. Drill through plasterboard & into masonry
   • Select the correct drill bit size for the Rigifix anchor (see product data – e.g. commonly 12 mm, etc.).
   • Drill straight through the board and dab and into the masonry to the specified depth.
   • Use an SDS or percussion drill where appropriate for the masonry type.
4. Clean the hole
   • Blow or vacuum out dust from the hole to help the anchor seat correctly.
5. Insert the Rigifix anchor/sleeve
   • Push the Rigifix sleeve/body into the hole until it sits correctly with the
     front flange tight to the plasterboard.
6. Fix the bracket/fixture
   • Position the bracket or fixture over the anchor.
   • Insert the supplied machine screw/bolt through the bracket, through the sleeve and into the masonry anchor.
   • Tighten to the recommended torque, ensuring the fixture is drawn tight and solid
     to the wall without crushing the plasterboard.
7. Repeat & final checks
   • Install all fixings as per the manufacturer’s pattern or engineer’s design.
   • Check the installed item (boiler, radiator, unit) is solid with no movement.

Technical & Performance Overview

Rigifix anchors are available in various sizes (e.g. M6, M8, M10, etc.), each with specific
drill diameters, embedment depths and load capacities. Always consult the
Rigifix technical literature and load tables for:

• Approved base materials – e.g. solid block, brick, concrete behind plasterboard.
• Recommended drill bit size and drilling depth.
• Installation torque and minimum/maximum fixture thickness.
• Characteristic and recommended working loads for different substrates and safety factors.

• Brand: Rigifix
• Product type: All-in-one dry lined wall fixing solution (mechanical anchor for masonry-backed plasterboard).
• Typical components: Anchor body/sleeve + matching high-tensile machine screw/bolt.
• Typical applications: Heavy and medium-duty fixings to dot & dab / dry lined masonry walls.
• Substrates: Masonry (brick, block, concrete) behind plasterboard (dot & dab or insulated board).
• Tools required: Drill/driver, appropriate masonry drill bit, screwdriver/ratchet or spanner.
• Standards & design: For safety-critical fixings (e.g. boilers, structural items) use in accordance with
  Rigifix data and, where necessary, relevant national standards and a structural engineer’s design.
• Storage: Store fixings in a dry, clean container; keep sets together to avoid mixing sizes.

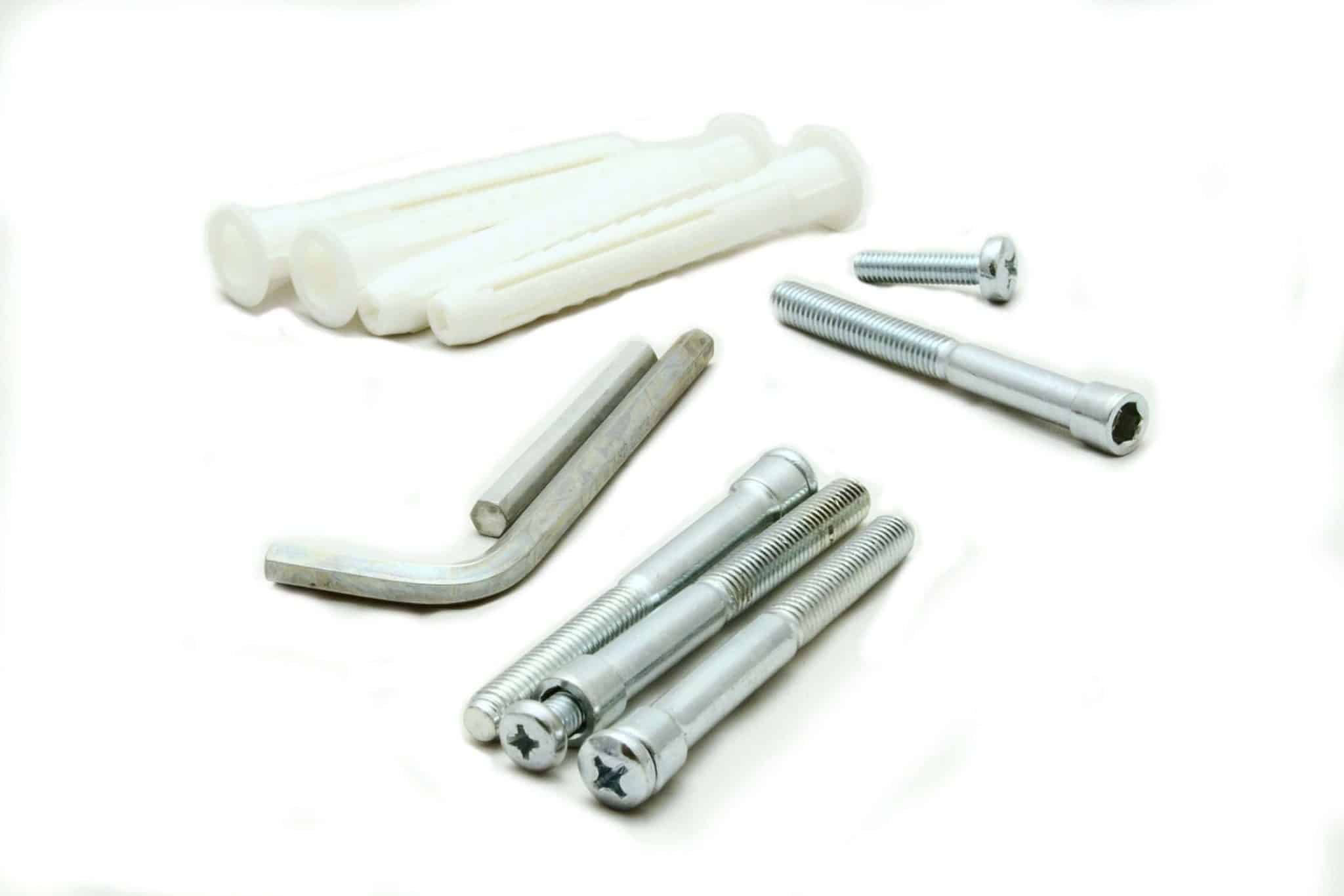

Available in M6 and M8:

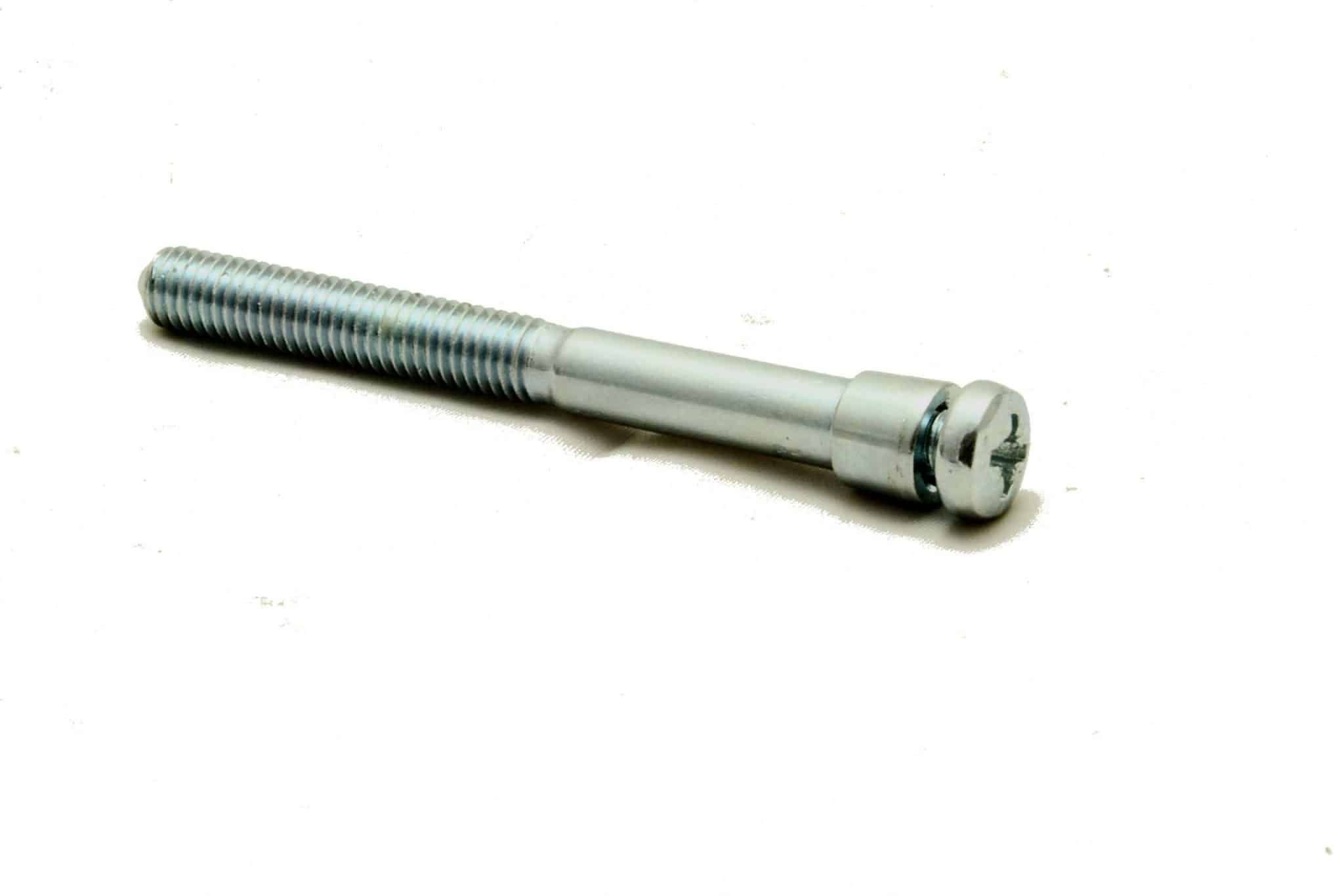

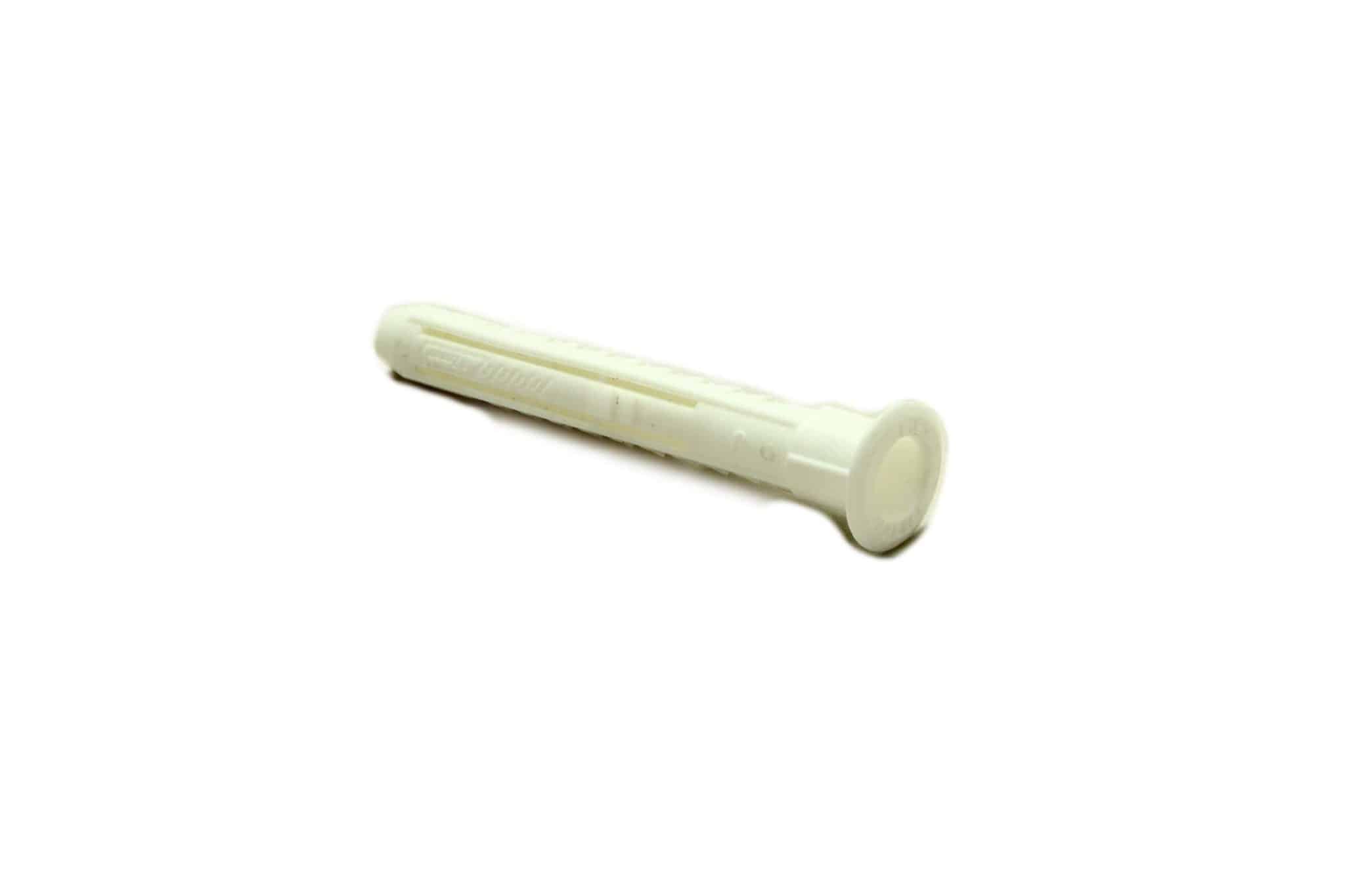

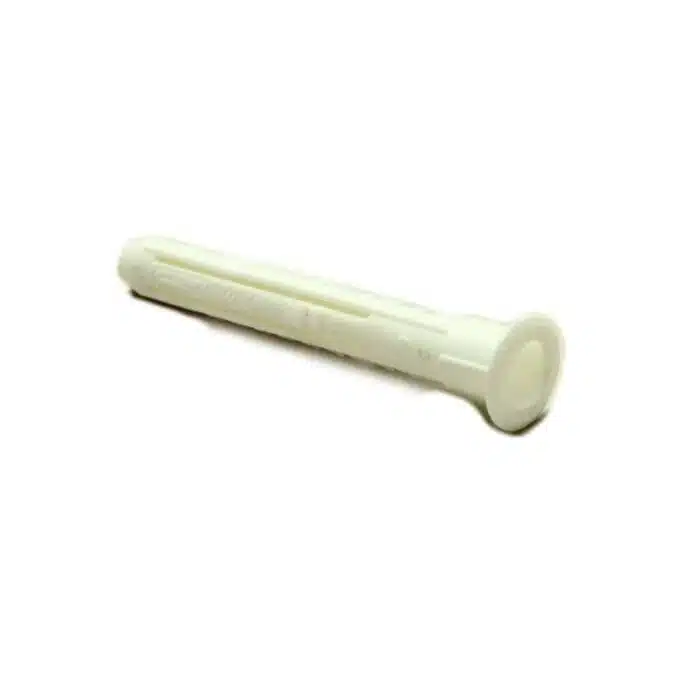

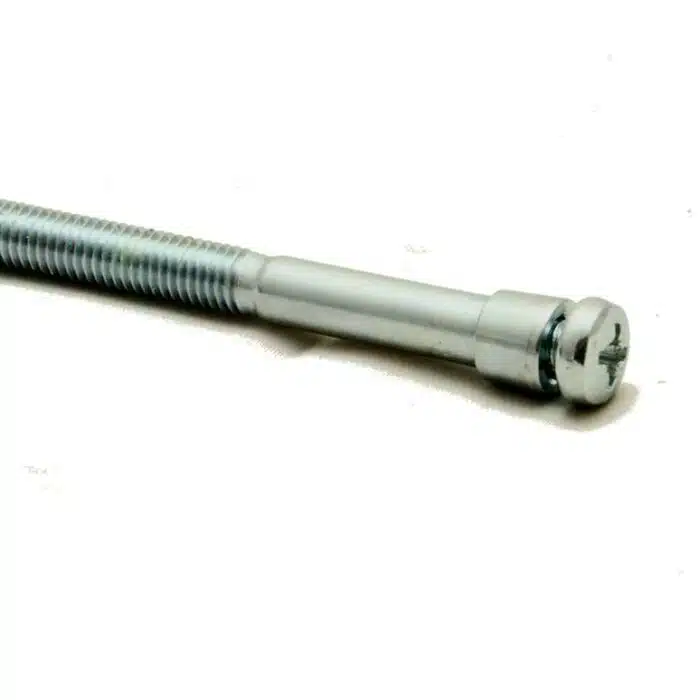

– M6 Each: (1 Plastic Plug, 1 sleeve, 1 M6 screw bolt)
– M6 Box 100: (Includes 100 plastic plugs, 100 metal sleeves, and 100 M6 screw bolts)

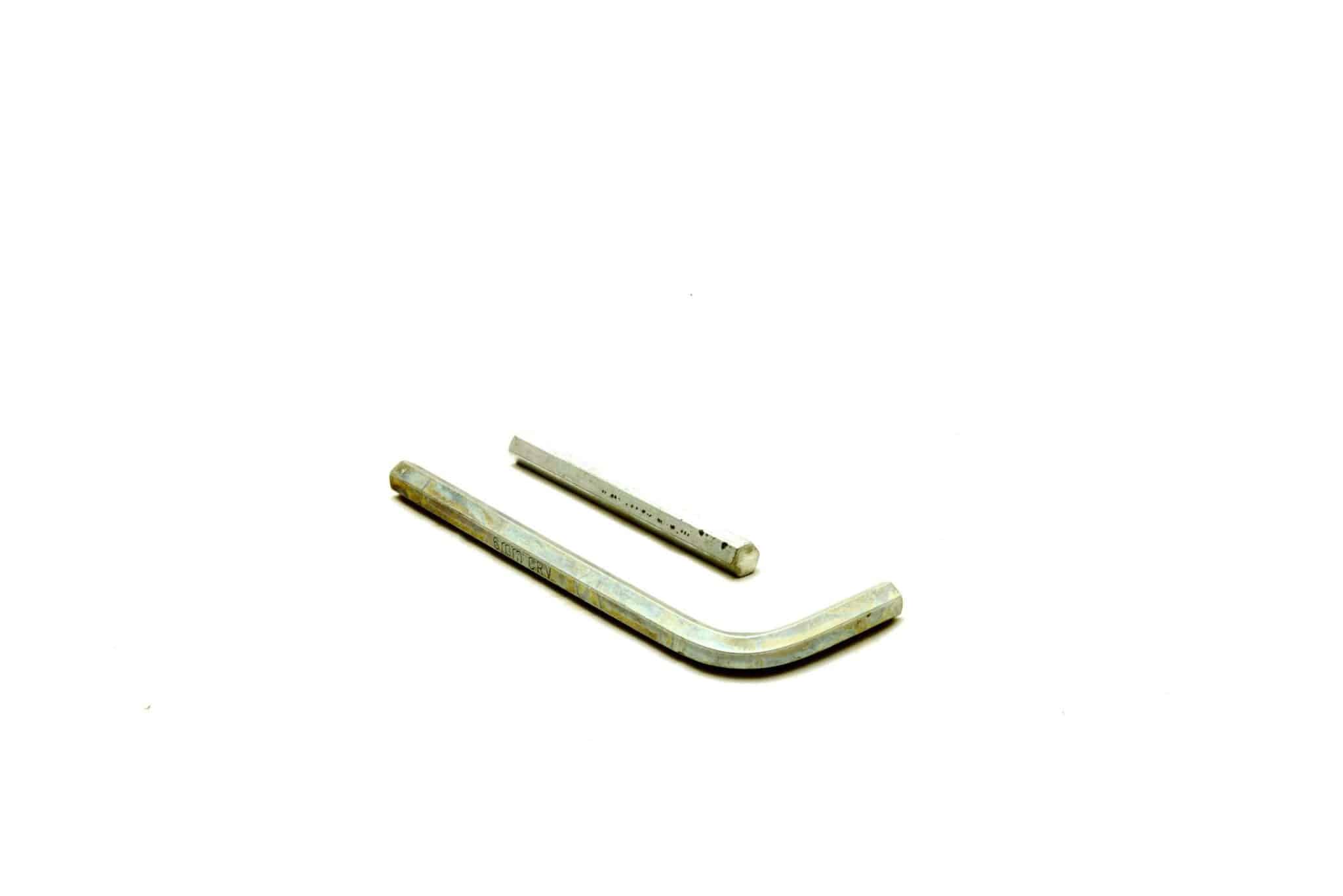

– M6 Rigikey: (Allen Key 6mm)
– M6 Rigidriver: (Hex Head driver suitable to screw sleeve into plug using a drill)
– M8 Each: (1 Plastic Plug, 1 sleeve, 1 M8 screw bolt)
– M8 Box 50: (Includes 50 plastic plugs, 50 metal sleeves, 50 M8 screw bolts, and 1 Rigikey)

Design & Safety Considerations

• Load design:
  • Use Rigifix’s published load capacities for your anchor size and base material.
  • Apply appropriate partial safety factors and useable working loads for your project.
  • For critical applications (e.g. boilers), seek guidance from a structural engineer if in doubt.
• Wall construction:
  • Rigifix is intended for masonry-backed dry lined walls, not for use solely
    in lightweight stud partitions without masonry behind.
  • Confirm there is sufficiently thick, sound masonry behind the board at fixing points.
• Edge distances & spacing:
  • Respect minimum edge distances and anchor spacings given in Rigifix data to avoid
    masonry breakout or reduced capacity.
• Installer competence:
  • Installation should be carried out by competent tradespeople familiar with fixing into
    masonry and following manufacturer’s instructions.

Rigifix All-In-One Dry Lined Wall Fixing Solution Features & Customer Benefits

• Genuinely secure fixings on dry lined walls
  Anchors directly into the solid wall behind the plasterboard, avoiding the weakness of fixing
  only into the board or adhesive dabs.
• Complete, matched solution
  All-in-one kit (anchor + screw/bolt) means no guesswork about compatible components, making
  ordering and installation straightforward.
• Ideal for modern housing stock
  Specifically designed to deal with dot & dab and insulated plasterboard, common in new-build
  and refurbished properties.
• Speeds up installation
  Clear method and matched components help reduce on-site trial and error, saving labour time
  for trades.
• Professional finish and peace of mind
  Provides clients with confidence that heavy items like boilers, radiators and wall units are
  securely fixed to the structure, not just the plasterboard.

Frequently Asked Questions – Rigifix All-In-One Dry Lined Wall Fixing Solution

1. What types of wall can I use Rigifix on?

Rigifix is intended for dry lined walls where plasterboard is bonded to solid masonry (dot & dab or
insulated plasterboard). The system anchors into:

• Brick,
• Concrete block,
• Concrete (where within the product’s approved scope).

It is not a fixing solely for plasterboard on timber or metal stud without masonry behind.

2. Can I use Rigifix for fixing a boiler to a dry lined wall?

Yes, this is one of the most common uses. However:

• Confirm your wall substrate and Rigifix size are suitable for the boiler weight and bracket design.
• Follow the boiler manufacturer’s fixing instructions and any structural design requirements.

3. What drill bit size do I need?

Drill size depends on the specific Rigifix model (e.g. M6, M8, M10). Always check:

• The Rigifix packaging, or
• Rigifix’s technical datasheet

for the correct drill diameter and depth for your chosen anchor.

4. Can I use standard wall plugs instead?

In dry lined/dot & dab situations, standard plugs in the plasterboard or loosely into the masonry
often do not provide reliable heavy-duty fixings. Rigifix is designed specifically to bridge the cavity
and anchor properly into the solid substrate while clamping the board/fixture assembly.

5. Do I need any special tools to install Rigifix?

Usually no specialist tools are required beyond:

• An appropriate masonry drill/bit,
• A drill/driver or ratchet/spanner for tightening the bolts,
• Standard marking and measuring tools.

6. Common Uses & How to Use Rigifix Effectively

Common Uses:

• Mounting boilers and heating controls to dry lined walls.
• Fixing radiators and tall towel rails.
• Hanging kitchen wall units and cabinets.
• Installing TV brackets, heavy shelves and AV equipment.
• Securing basins, WC frames, hand dryers and other sanitaryware.

How to Use – Quick Guide:

1. Confirm the wall is masonry-backed plasterboard and is structurally suitable.
2. Mark fixing points using the actual bracket or template.
3. Drill through board and into masonry with the specified drill size and depth.
4. Clean the hole and insert the Rigifix anchor/sleeve until flush with the plasterboard.
5. Offer up the bracket and insert the supplied bolt through the fixture into the anchor.
6. Tighten to the recommended torque until the bracket is firmly clamped to the wall.
7. Repeat for all required fixing points and check the final installation is rigid and secure.
