Timco Collated Nail Packs

Timco Collated Nail Packs provide a convenient, trade‑ready supply of
collated nails for first fix and second fix nail guns. Available in a range of
gauges, lengths, collation angles and finishes, these packs are ideal for
framing, roofing, decking, fencing, studwork, joists and general timber construction.
Selected packs may also include fuel cells for gas nailers (check individual product details).

Timco Collated Nail Packs are designed to meet the day‑to‑day needs of
carpenters, timber framers, roofers, deck builders and general contractors. By supplying nails
in collated strips or coils, they enable:

• Fast, continuous nailing using pneumatic, gas or cordless nailers,
• Reduced downtime compared with loose nails,
• Consistent nail placement and depth control for a professional finish.

Typical varieties within the Timco Collated Nail range include:

• 34° paper collated clipped head or offset nails for 1st fix framing nailers,
• 21° plastic collated full round head nails for framing and structural work (where round head is specified),
• Coil nails for roofing, fencing and pallet/packaging applications,
• Just‑or brad‑style collated nails for 2nd fix / finishing nailers (e.g. 16g, 18g) – depending on the specific product.

Finishes are chosen according to the application, for example:

• Bright steel / uncoated – for internal dry environments where corrosion risk is low.
• Electro‑galvanised – improved corrosion resistance for internal & sheltered external use.
• Hot dip galvanised (HDG) – thicker zinc coating for external and treated timber where higher protection is required.
• Stainless steel – for high‑corrosion environments (coastal, highly exposed, certain hardwoods and chemically treated timbers).

Typical Use Cases

• Framing & carcassing – stud walls, joists, rafters, wall plates, beams and general structural timberwork.
• Roofing – trusses, sarking, facias, soffits, roofing boards and some tile/slate battens (as per spec).
• Decking & fencing – fixing joists, rails, boards and slats (using suitable external‑grade or stainless nails).
• Cladding & exterior joinery – timber cladding, subframes and trims (appropriate finish required).
• Second fix & finishing – architraves, skirting, casings and decorative trims (with Timco collated brad/finishing nails).

Types of Timco Collated Nail Packs (Overview)

Note: The range may include some or all of the following categories; check individual listings.

• 34° Paper Collated Framing Nails
  • For angled framing nailers commonly used in 1st fix carpentry.
  • Available as clipped head / offset or full/round head‑style variants (check spec).
  • Typical diameters approx. 2.8–3.1 mm, lengths 50–90 mm (varies by pack).
• 21° Plastic Collated Nails
  • For full round head framing nailers with plastic collation.
  • Common for structural work where round head nails are specified by code or engineer.
• Coil Nails
  • Wire‑ or plastic‑collated coils for high‑volume nailing.
  • Used in roofing, pallets, fencing, cladding and fabrication.
• Finishing / Brad Nails
  • Collated finishing nails or brads (e.g. 16 gauge, 18 gauge) for 2nd fix nailers.
  • Suitable for interior trim, casings, skirtings, mouldings and cabinets.

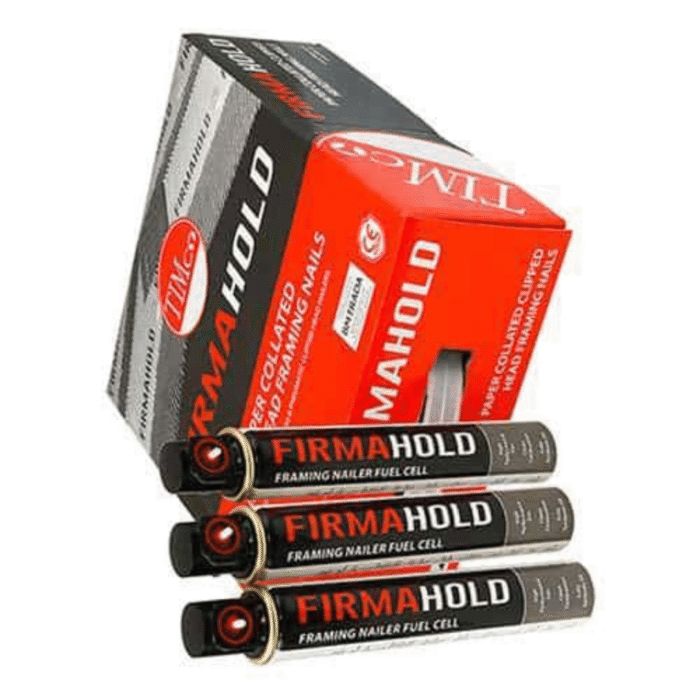

• Gas & Nail Packs
  • Selected packs combine collated nails + matching gas/fuel cells for gas‑powered nail guns.
  • Ensures reliable ignition and performance with the correct fuel for the nails supplied.

Application & Selection Tips

• Choose the right nail type & angle:
  • Check your nail gun’s manual for the required collation angle, head type and shank diameter.
  • Match the Timco Collated Nail Pack (e.g. 34° paper, 21° plastic, coil) to your specific tool.
• Choose the correct finish:
  • Internal dry: Bright or electro‑galvanised (as permitted by spec).
  • External / treated timbers: Hot dip galvanised or stainless steel (especially in aggressive/exposed environments).
  • Coastal / highly corrosive atmospheres: Stainless steel is usually recommended.
• Choose shank type:
  • Smooth shank: Easier driving, suitable where extreme pull‑out resistance is not critical.
  • Ring / annular shank: Higher pull‑out resistance, ideal for decking, cladding, roofing and structural works where extra holding power is needed.
• Nail length & diameter:
  • General rule: nail length ≈ 2.5–3 × the thickness of the thinner timber being fixed (subject to code/design).
  • Always follow building regulations, engineering specs or manufacturer guidelines for critical connections.
• Gun setup & safety:
  • Set air pressure (pneumatic) or power level (gas/cordless) to suit the nail length and timber hardness.
  • Always wear eye & hearing protection, and follow nail gun safety procedures.

Technical & Performance Overview

Exact specifications vary between Timco Collated Nail Packs. Always refer to the individual product label
or datasheet for definitive information on:

• Nail diameter & length
• Head style (clipped, offset, full round, brad/finishing)
• Shank type (smooth, ring/annular, screw shank)
• Finish/coating (bright, EG, HDG, stainless)
• Collation type & angle (paper/plastic/wire, 21°, 34°, coil)
• Gun compatibility
• Inclusion of fuel cells (if applicable)

• Brand: Timco
• Product type: Collated nail packs for framing & finishing nailers.
• Materials: Carbon steel or stainless steel (grade varies by pack).
• Coatings: Bright, electro‑galvanised, hot dip galvanised or stainless (per product).
• Collation: Paper, plastic or wire collated strips/coils in standard trade formats.
• Applications: Framing, roofing, decking, fencing, cladding, carcassing, second fix trim.
• Standards & compliance: Many Timco fasteners are designed to meet relevant EN/BS fastener standards;
  check individual products for specific certifications and approvals.
• Packaging: Boxes or tubs containing pre‑collated nails; selected SKUs include fuel cells.
• Storage: Keep in a dry environment; protect from moisture and physical damage
  to maintain collation integrity and corrosion protection.

Timco Collated Nail Packs Features & Customer Benefits

• High productivity on site
  Collated format and reliable performance in nail guns allow rapid fixing and reduce manual nailing,
  speeding up framing and fit‑out work.
• Wide choice for different jobs
  With multiple angles, finishes, diameters and shank types, you can match the exact nail
  specification to the task, environment and code requirements.
• Consistent quality
  Timco’s fastener expertise helps ensure consistent collation, driveability and holding power
  across the product range.
• Reduced wastage
  Packed in usable trade quantities with robust collation to minimise breakage and loose nails on site.
• Convenient gas & nail options
  Where supplied with fuel cells, packs provide a complete solution for gas nailers, reducing the risk
  of running short of fuel versus nails.

Frequently Asked Questions – Timco Collated Nail Packs

1. How do I know which Timco Collated Nail Pack fits my nail gun?

Check your nailer’s specification for:

• Collation angle (e.g. 21°, 34°),
• Collation type (paper, plastic, wire, coil),
• Shank diameter & length range,
• Head type (clipped vs full round).

Then select the Timco pack whose details match those requirements. When in doubt, refer to both
the tool manual and the Timco product data.

2. Which finish should I choose for external work?

For most external timber work:

• Hot dip galvanised is recommended as a minimum for exposed softwood and treated timber.
• Stainless steel is often preferred in coastal areas, very exposed locations,
  hardwoods and corrosive environments.

Check local building codes and timber treatment manufacturer guidance where applicable.

3. Are Timco Collated Nail Packs suitable for structural applications?

Many collated nails are used in structural timber connections, but suitability depends on:

• Nail type, diameter, length, head and shank,
• Finish/coating (for longevity/corrosion),
• Design requirements under relevant standards (e.g. Eurocode 5) and engineer’s specification.

For structural applications, always follow engineer’s design and use nails that meet the
specified standard and performance class.

4. What’s the difference between ring shank and smooth shank nails?

Ring shank (annular):

• Has rings along the shank that provide higher pull‑out resistance,
• Best for decking, cladding, roofing and structural works where extra holding power is needed.

Smooth shank:

• Easier to drive,
• Suitable where ultimate pull‑out resistance is less critical or for temporary structures and internal work.

5. Do all Timco Collated Nail Packs include gas/fuel cells?

No. Only certain gas & nail pack SKUs include matching fuel cells.
Standard collated nail packs typically contain nails only. Always check the:

• Product title (e.g. “+ Gas” / “With Fuel Cells”), and
• Contents description in the listing or on the box.

6. Common Uses & How to Use Timco Collated Nail Packs

Common Uses:

• Framing stud walls, floors, roofs and carcassing.
• Building decks, fences, sheds and outbuildings.
• Fixing roof battens, cladding and subframes.
• Second fix trim, casings, skirting and decorative timber work (with appropriate brads/finish nails).

How to Use – Step‑by‑Step (Framing Nails Example):

1. Confirm the Timco collated nails are compatible with your nailer (angle, collation, size).
2. Load the collated strip or coil as per the nail gun manufacturer’s instructions.
3. Set the depth of drive and air pressure/power setting suitable for the timber and nail length.
4. Position the nailer square to the timber, ensure there are no obstructions or hidden services, and fire.
5. Check nail heads are appropriately driven (flush or slightly below surface, depending on spec).
6. Adjust gun settings if necessary and continue nailing, observing all safety precautions.
