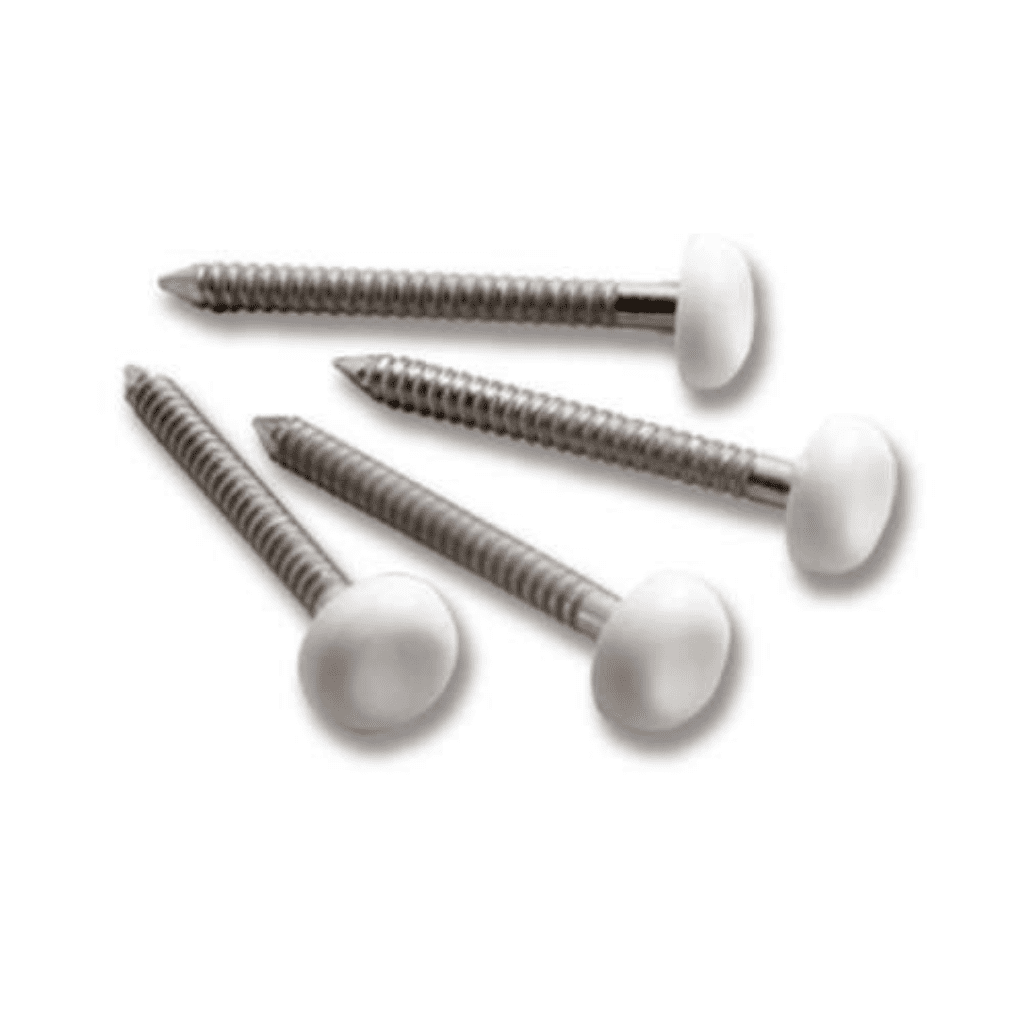

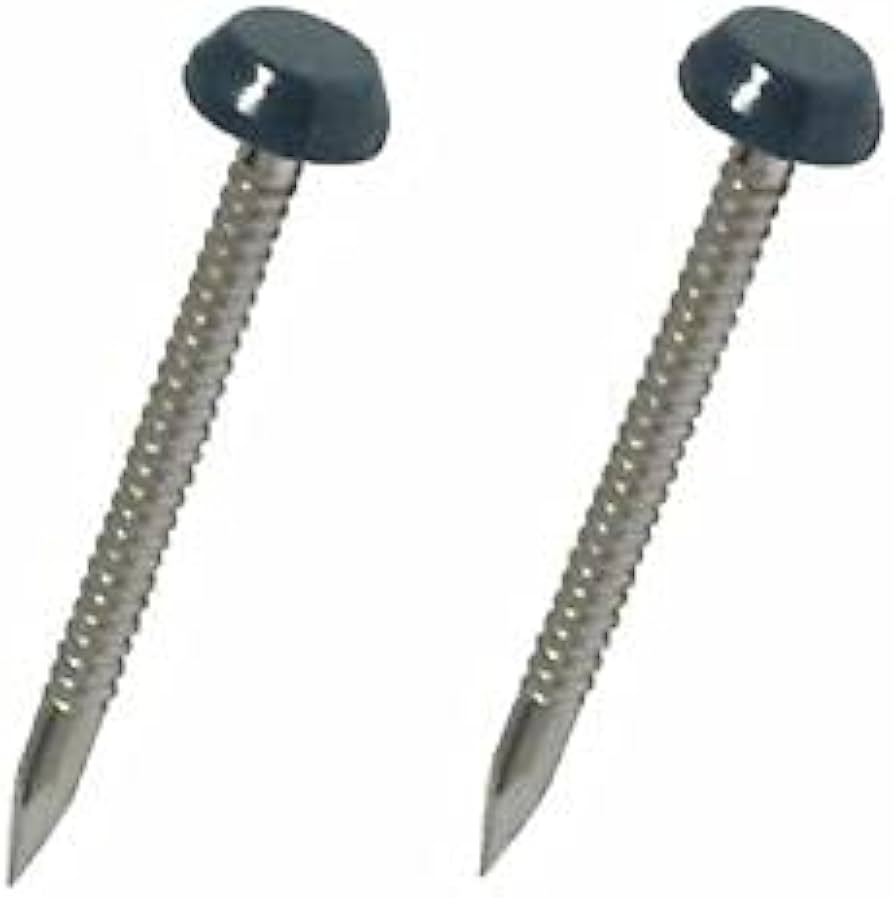

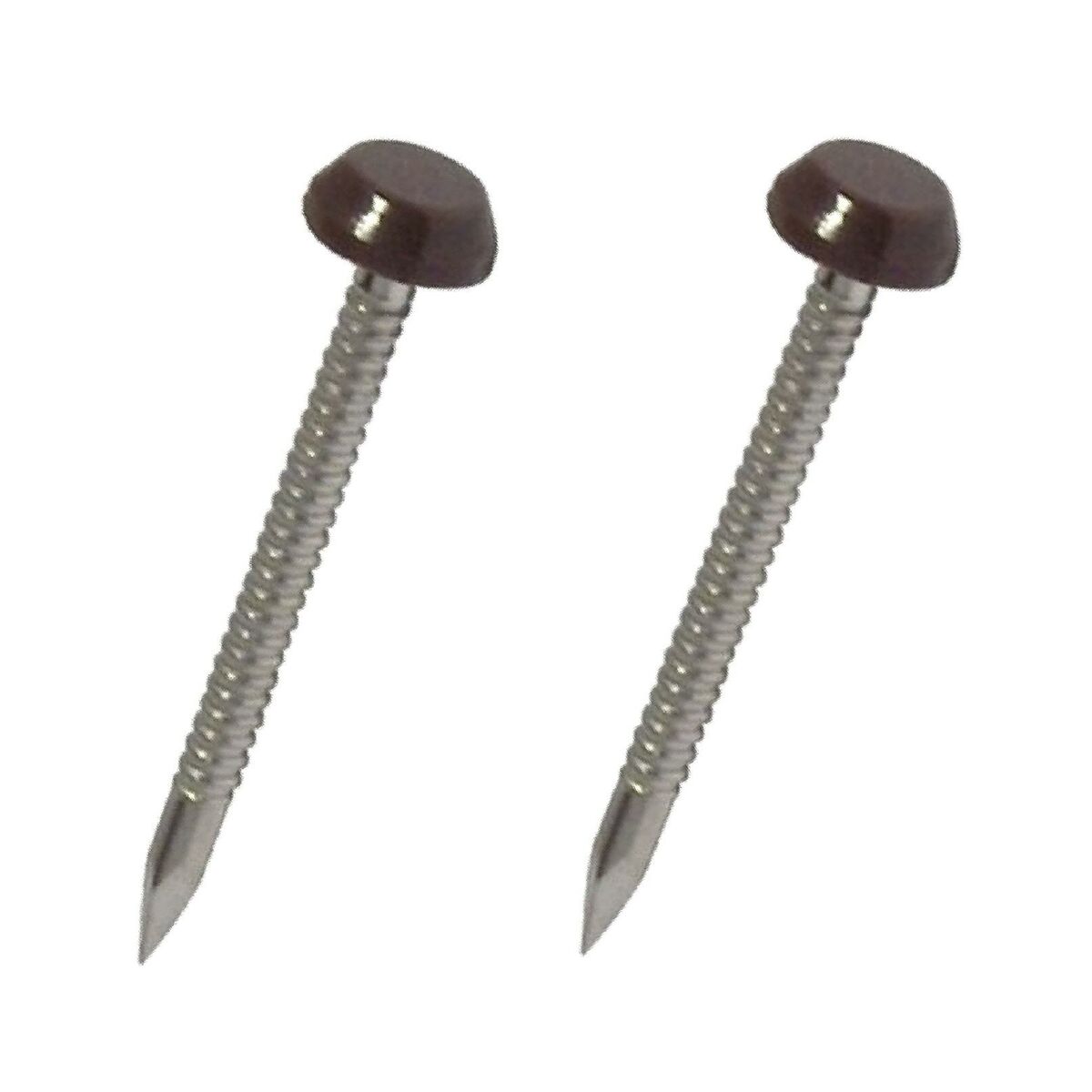

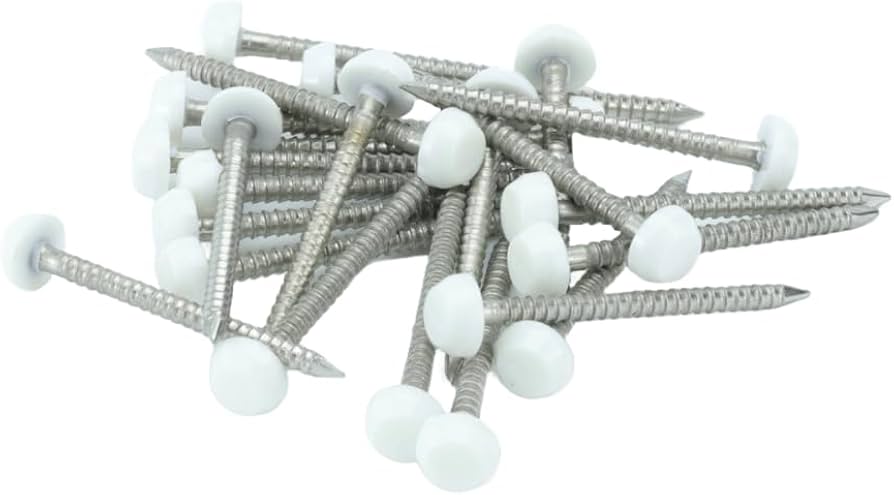

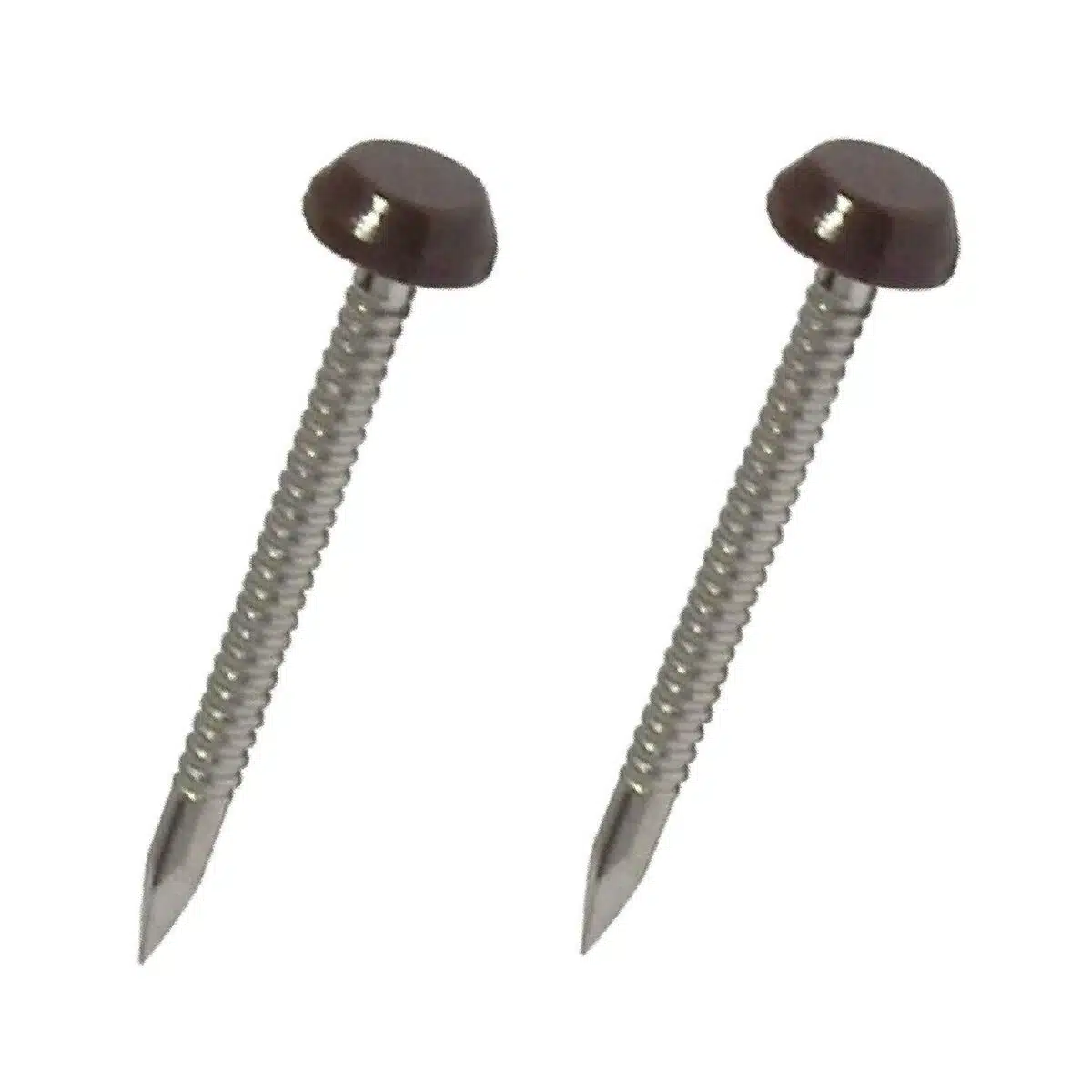

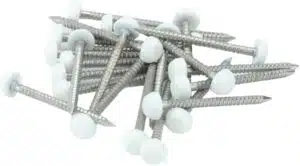

The shank is typically manufactured from hardened stainless steel (often Grade 304 or 316 – confirm exact grade on the product label), providing excellent corrosion resistance in exposed eaves, verges and gable ends. This is particularly important in the UK climate, where roofline fixings must withstand rain, wind‑driven moisture and UV exposure over many years.

Thanks to their combination of stainless steel shank and UV‑stable poly head, these fascia nails are well‑suited to applications where long‑term appearance and durability are key, including:

• uPVC fascia boards and bargeboards
• uPVC soffit boards (solid, vented or hollow)
• uPVC cladding boards on gables and dormers
• Roofline trims, cover boards and capping boards

Poly head pins are commonly used as part of roofline systems that are designed and installed in line with manufacturer guidance and relevant roofing standards such as BS 5534 (Slating and tiling) for overall roof detailing. The nails themselves are typically manufactured from stainless steel grades conforming to EN 10088 (stainless steel composition), supporting their use in demanding external environments.

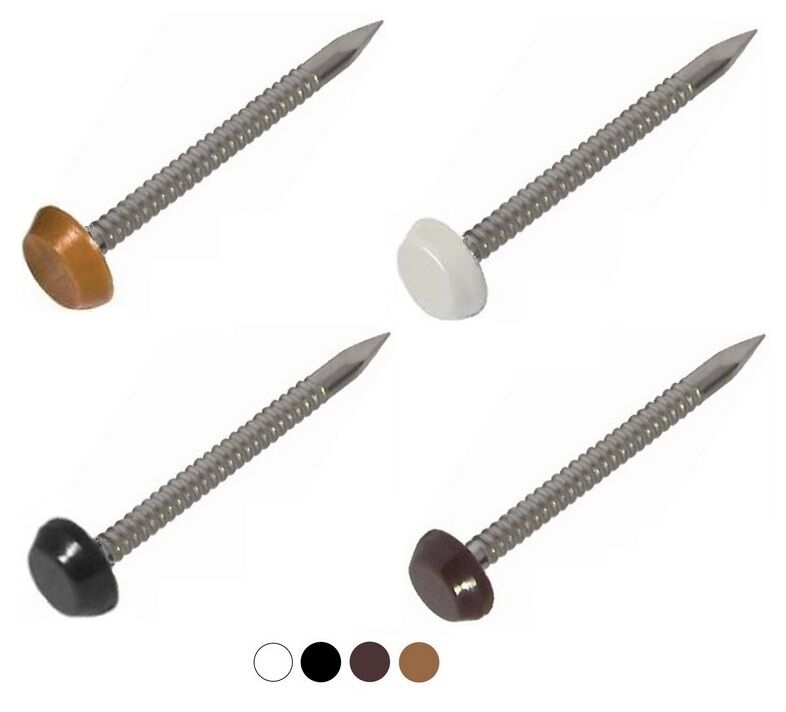

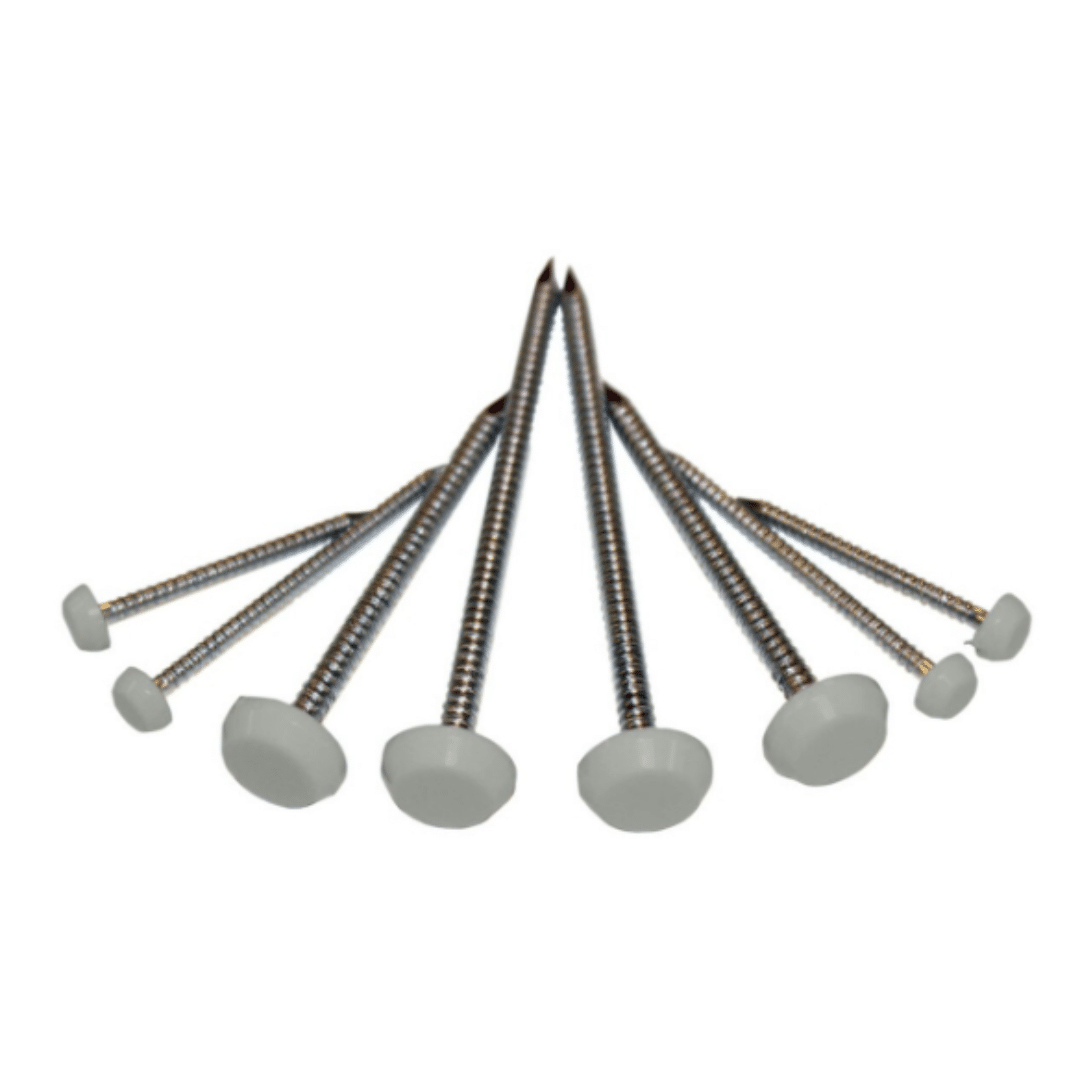

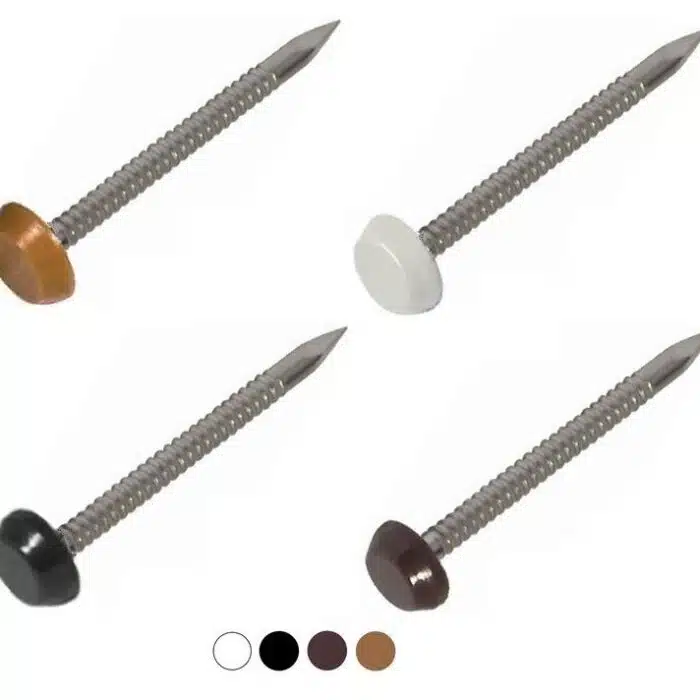

Available in a range of lengths and colours (e.g. white, black, brown, anthracite grey and other popular foil‑matched finishes), these poly head fascia nails can be matched to the most common uPVC fascia and cladding systems used by major brands across the UK, helping installers achieve a seamless look without the visual distraction of shiny metal fixings.

Typical Applications & Use Cases

• Fascia boards
  Fixing uPVC fascia and bargeboards to timber rafters or backing boards along eaves and gables.
• Soffit boards
  Securing solid, vented or hollow soffit boards to timber framing at eaves, often in combination with appropriate trims and starter battens.
• Roofline trims & cover boards
  Attaching uPVC cover boards, capping boards and finishing trims over sound existing timber or new backing boards.
• uPVC cladding
  Fixing uPVC cladding boards on gable ends, dormers, porch canopies and other vertical surfaces where a discrete fixing is needed.
• Refurbishment & upgrades
  Replacing rotten timber fascia and soffit with low‑maintenance uPVC systems as part of re‑roofing or roofline renovation projects.

Note: Always install fascia, soffit and cladding systems in accordance with the board manufacturer’s installation instructions, including recommended nail lengths, fixing centres and expansion allowances.

Installation Guidance

Quick Installation Steps

1. Prepare the substrate
   Ensure rafters, noggins or backing boards are sound, level and securely fixed. Replace any decayed timber before installing uPVC boards.
2. Cut fascia / soffit to length
   Measure and cut uPVC fascia or soffit boards allowing for thermal expansion as per the manufacturer’s guidance.
3. Pre‑drill oversize holes in uPVC (if recommended)
   Many manufacturers advise slightly oversize clearance holes in the uPVC to allow for expansion and contraction around the nail shank.
4. Select correct nail length
   Choose a poly head fascia nail length that provides sufficient penetration (often at least 40–50 mm) into the timber substrate while passing cleanly through the uPVC board.
5. Drive nails carefully
   Using a hammer, drive the nails in square to the board surface until the poly head sits flush. Avoid striking the plastic head directly with full force; use controlled taps to prevent damage.
6. Maintain correct fixing centres
   Follow the board manufacturer’s recommended fixing centres (often around 600 mm for fascia and 300–400 mm for soffit, but always check the specific system).

Best Practice & Pro Tips

• Allow for thermal movement
  uPVC expands and contracts with temperature. Oversize clearance holes and avoiding over‑tight nailing helps prevent board bowing or buckling.
• Do not over‑drive nails
  The poly head should sit flush, not crushed, against the board surface. Over‑driving can crack uPVC or deform the head.
• Use stainless steel shanks in exposed or coastal areas
  Where boards are exposed to driving rain, sea air or pollution, choose stainless steel shank poly pins (often Grade 304 or 316) for maximum corrosion resistance.
• Match nail colour to board colour
  Use colour‑matched poly heads (white, black, brown, anthracite grey, etc.) to blend with fascia and soffit boards for a professional finish.
• Check local standards and guidance
  When installing as part of a re‑roofing project, consider the guidance in BS 5534 (Slating and tiling) and relevant manufacturer literature to ensure correct overall roofline detailing.

Key Features & Advantages

• Colour‑Matched Poly Head
  Feature: Durable plastic head available in popular fascia colours (white, black, brown, grey, etc.).
  Benefit: Provides a discreet, blended fixing that enhances the appearance of uPVC fascia, soffit and cladding installations.
• Stainless Steel Shank
  Feature: Corrosion‑resistant stainless steel, typically to EN 10088 grades (e.g. 304 or 316 – confirm on product).
  Benefit: Offers long‑term resistance to rust and staining, ideal for exposed roofline use and coastal conditions.

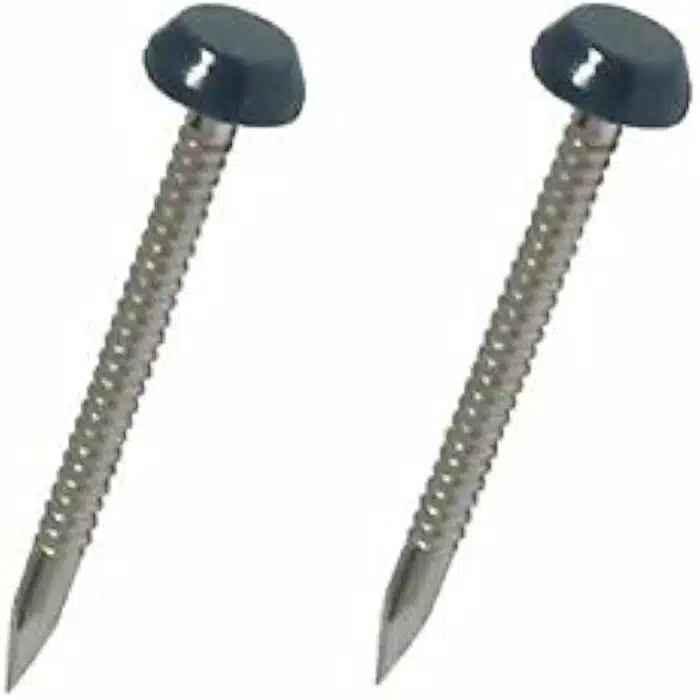

• Ringed / Annular Shank (variant‑dependent)
  Feature: Enhanced shank profile designed to improve pull‑out resistance in timber.
  Benefit: Helps keep fascia and soffit boards securely fixed, even under wind loading and thermal movement.
• Designed for uPVC Roofline Systems
  Feature: Lengths and head styles tailored to common uPVC fascia and soffit profiles.
  Benefit: Gives a more reliable result than using generic galvanised nails or screws on uPVC roofline installations.
• Supplied in Handy Packs
  Feature: Typically supplied in boxes or bags with a consistent quantity per colour/length.
  Benefit: Simple to stock and manage on site, ensuring you always have the right colour and length available.

Technical Information & Standards

• Product Type: Poly head pins / fascia nails for uPVC
• Head Material: UV‑stable polymer (colour‑matched)
• Shank Material: Stainless steel (commonly Grade 304 or 316 – confirm exact grade on product label)
• Shank Style: Smooth or annular / ring shank (variant‑dependent)
• Typical Applications: uPVC fascia, soffit, cladding and roofline trims
• Substrates: uPVC boards fixed to timber rafters, battens or backing boards
• Environment: External use, including exposed roofline and (with appropriate grade) coastal locations
• Relevant Material Standard (Guidance): Stainless steel to EN 10088 (grades and corrosion resistance vary by exact composition)
• Roofline & Installation Guidance: Use in conjunction with uPVC board manufacturer instructions and relevant roofing standards such as BS 5534 for overall roof detailing.
• Colours Available: Typically white, black, brown, anthracite grey and other popular roofline finishes (confirm range for this product).

Poly Head Pins Fascia Nails Frequently Asked Questions

1. What are poly head pins fascia nails used for?

Poly head pins fascia nails are used to fix uPVC fascia, soffit and cladding boards to timber rafters, noggins or backing boards. The plastic heads are colour‑matched to the boards, giving a clean, discrete fixing that is far less visible than standard metal nails or screws.

2. Why should I use stainless steel poly head pins instead of galvanised nails?

Stainless steel poly head pins offer significantly better resistance to corrosion, staining and long‑term discolouration than standard galvanised nails, especially in exposed eaves and coastal environments. Using stainless shanks helps prevent rust marks running down your fascia and soffit boards and supports a longer‑lasting installation.

3. Do I need to pre‑drill fascia boards before using poly head pins?

Many uPVC roofline manufacturers recommend pre‑drilling slightly oversize clearance holes in the fascia or soffit board to allow for thermal expansion and contraction around the nail shank. This reduces the risk of boards bowing or distorting over time.

Always refer to the specific board manufacturer’s fixing instructions for hole size and spacing advice.

4. How far apart should I space poly head fascia nails?

Fixing centres vary between systems, but typical guidance is:

• Fascia boards: nail at every rafter or at centres around 600 mm (or closer in exposed locations)
• Soffit boards: closer centres, often at 300–400 mm, depending on board type and thickness

Always follow the uPVC manufacturer’s data sheet for precise fixing centres and edge distances.

5. Are poly head fascia nails suitable for coastal areas?

Yes – provided you choose poly head pins with an appropriate stainless steel grade (often recommended Grade 316 for aggressive coastal environments). Stainless steel shanks and UV‑stable heads are well suited to coastal roofline applications where salt spray accelerates corrosion.

6. Can I use poly head pins on timber fascia boards?

Poly head pins are primarily designed for uPVC fascia and soffit boards, but they can also be used on timber fascia where a stainless, colour‑matched fixing is desired. However, for traditional timber fascia, many installers still prefer galvanised nails or exterior wood screws, depending on the finish and paint system being used.

7. What is the difference between poly head pins and standard clout nails?

Poly head pins typically have:

• A plastic, colour‑matched head designed for uPVC boards
• A stainless steel shank for enhanced corrosion resistance
• Geometry optimised for roofline applications

Standard clout nails have a metal head and shank (often galvanised mild steel) and are more visible on the finished surface. They are more commonly used for felt, sheet materials and some timber applications rather than colour‑critical uPVC roofline.

8. Are the poly heads UV‑stable or will they fade?

Quality poly head pins use UV‑stabilised polymer heads formulated to resist fading and embrittlement under sunlight. Over many years some degree of ageing is inevitable, but reputable products are designed to remain colourfast and durable in normal UK conditions.

9. Which standard applies to the stainless steel used in these fascia nails?

The stainless steel used for poly head fascia nails typically conforms to **EN 10088**, which specifies the composition and properties of stainless steels (such as Grades 304 and 316). The exact grade and corrosion resistance should be confirmed on the product label or technical datasheet.

10. Common Uses & How to Use Poly Head Pins Fascia Nails

Common Uses

• Fixing uPVC fascia boards to rafter ends
• Securing soffit boards to timber framing
• Installing uPVC cladding on gables and dormers
• Attaching roofline trims, cover boards and capping boards
• Refurbishing old timber roofline with low‑maintenance uPVC

How to Use – Step by Step

1. Inspect and prepare the roofline
   Remove old fascia/soffit as required, repair or replace any rotten timber, and ensure rafters and backing boards are clean and level.
2. Measure and cut uPVC boards
   Cut fascia and soffit boards to length, allowing for thermal expansion as per manufacturer instructions.
3. Pre‑drill boards
   Drill slightly oversize clearance holes at recommended centres and edge distances in the uPVC boards where nails will be placed.
4. Offer boards into position
   Position the board against the rafters or backing board, ensuring straight alignment and correct overhangs at eaves.
5. Drive poly head pins
   Align the poly head pin with the drilled hole and timber behind, then tap in with a hammer until the head sits flush with the board surface.
6. Check alignment and fixings
   Confirm that boards run straight and flat, adjusting as required before completing all fixings to specification.
7. Complete roofline detailing
   Install additional trims, joint covers and sealants as per the uPVC system guidelines and relevant roofing standards.
