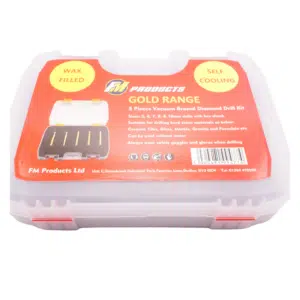

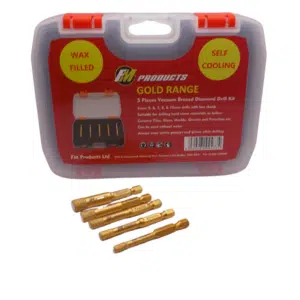

FM Products Gold Range Wax Filled Diamond Dry Tile Drill 5 Piece Bit Set

The FM Products Gold Range Wax Filled Diamond Dry Tile Drill 5 Piece Bit Set is a
professional‑grade collection of dry‑cut diamond tile drills with internal wax coolant cores,
designed for fast, clean, water‑free drilling in today’s hardest tiles and stone. Ideal for
porcelain, ceramic, quarry tiles, marble and granite, this Gold Range set is perfect for
tilers, plumbers, electricians, kitchen & bathroom fitters who need reliable, multi‑size
dry drilling performance on site.

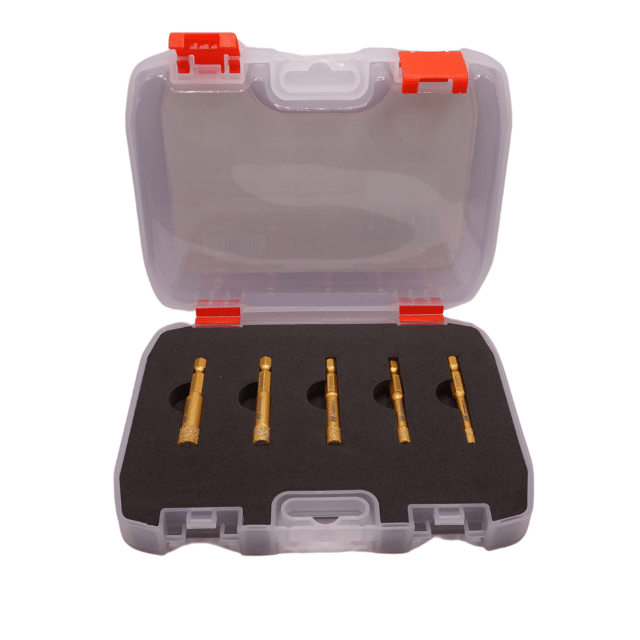

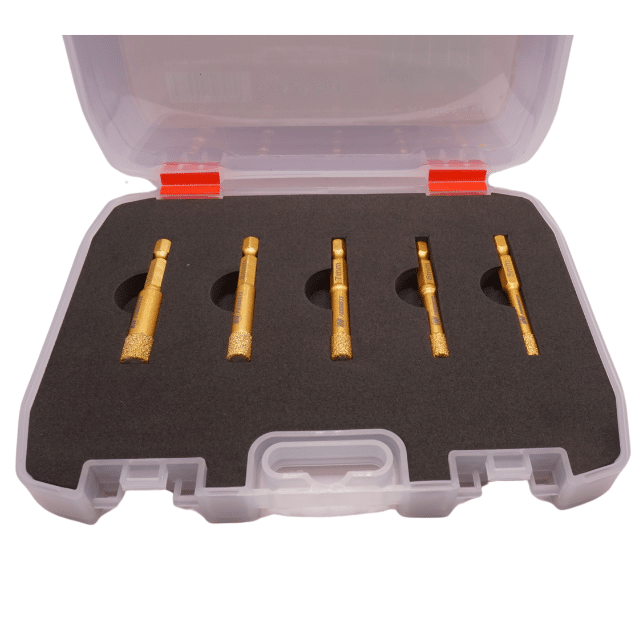

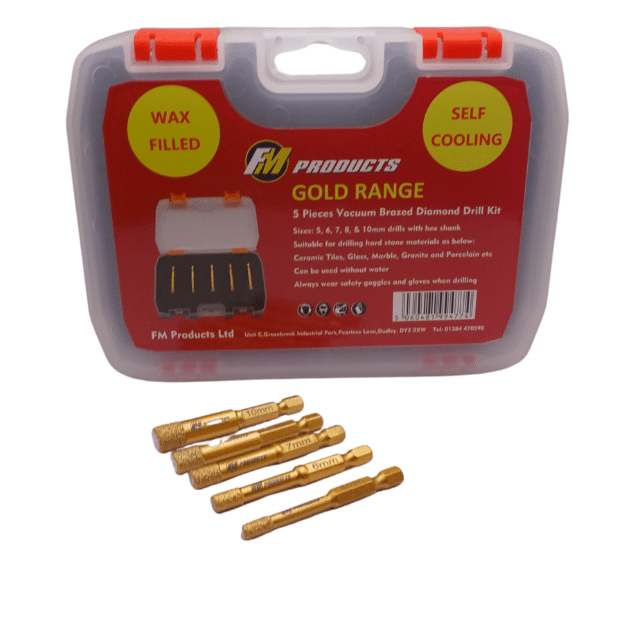

The FM Products Gold Range Wax Filled Diamond Dry Tile Drill 5 Piece Bit Set brings together
a selection of wax‑filled dry diamond drills in a practical, trade‑ready kit. Each bit features a
diamond‑impregnated cutting crown bonded to a robust steel body, with an internal wax core
that melts during drilling. This provides cooling and lubrication directly at the cutting edge,
helping to maintain cutting speed and extend bit life – all without the need for external water.

The set typically includes a combination of the most useful tile drilling diameters for
wall plugs, fixings and pipe penetrations (for example, approx. 5 mm, 6 mm, 8 mm,
10 mm and 12 mm – always check the specific pack for exact sizes). This makes it ideal
for everyday work such as:

• Fixing bathroom and kitchen accessories,
• Installing shower screens, mirrors and cabinets,
• Drilling radiator brackets and shelving fixings,
• Creating access for pipework and cable runs through tiles.

Designed for use on hard porcelain tiles, dense ceramics, quarry tiles and many natural stones
(including marble and granite), these Gold Range drills are an essential part of a
professional installer’s toolbox for high‑end tiled bathrooms, kitchens and feature walls.

Typical Use Cases

• Bathroom installations – drilling clean fixing holes in porcelain and ceramic tiles for
  towel rails, shower doors, mirrors, cabinets and sanitary brackets.
• Kitchen and splashback work – mounting wall units, extractor hoods, shelves and accessories
  onto tiled splashbacks and feature walls.
• High‑end tiling projects – working on large‑format porcelain, polished tiles and natural stone
  where chip‑free holes and accurate sizing are critical.
• Plumbing and heating – drilling neat holes for pipework and radiator tails
  through tiled finishes.
• Electrical and data – creating access points for cables, conduits and fixings where tiles
  are already in place.

Usage & Application Tips

• Choosing the right tool:
  • Use with a corded or cordless drill/driver with a standard three‑jaw chuck
    suitable for the drill shank.
  • Set the drill to rotary‑only mode – do not use hammer action with diamond tile drills.
• Surface preparation:
  • Mark the hole position accurately using a non‑permanent marker or masking tape.
  • On very smooth tiles, apply a small piece of masking tape or use a drill guide/template
    to help prevent the bit from skidding.
  • Ensure the tile is firmly fixed to a stable substrate; loose tiles are more likely to crack.
• Starting the hole:
  • Begin drilling at a low speed, holding the drill at a slight angle to gently “score”
    the glaze and start a track.
  • Once the bit has started to bite, gradually bring the drill upright and continue drilling.
• Drilling technique:
  • Use moderate, steady pressure – let the diamond do the cutting; excessive force increases heat
    and risk of damage.
  • On very hard porcelain or stone, use a light pecking action (short in‑and‑out movements) to
    help clear debris and control temperature.
  • The internal wax will melt and migrate to the cutting edge as the bit heats up – this is normal
    and provides cooling and lubrication during dry drilling.
• Depth control & substrate:
  • Once through the tile and adhesive bed, you may reach masonry or board (plasterboard, cement board).
    You can continue carefully with the diamond bit for a shallow depth, but for deeper holes it’s usually best to
    switch to a masonry or wood bit sized to match your plug or pipe.
  • Avoid forcing the diamond bit deeply into brick or concrete – its primary role is to cleanly cut the tile.
• Cooling & bit life:
  • Although designed for dry use, allowing the bit to cool between holes will extend life,
    especially when drilling multiple holes in hard porcelain.
  • For intensive work, brief light external misting with water may be used if safe to do so around
    electrics and finishes, but is generally not necessary due to the wax core.
• Safety:
  • Wear safety glasses and gloves when drilling tiles and stone.
  • Use a dust mask if drilling produces fine particulates.
  • Check for hidden services (cables, pipes) before drilling in walls or floors.

Technical & Performance Overview

FM Products Gold Range diamond drill bits are professional dry tile drills, typically manufactured and
tested in line with EN 13236 – Safety requirements for superabrasive products and FM Products’
own internal quality standards. For specific test results and safety information, always consult the
latest technical datasheet and Safety Data Sheet (SDS).

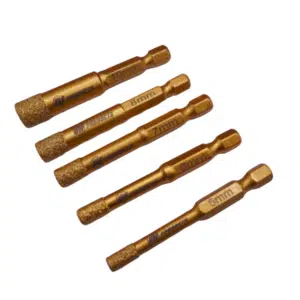

• Type: Wax filled diamond dry tile drill bits (crown‑type), designed for
  dry drilling without external water cooling.
• Range: Gold Range – FM Products’ premium performance tier for tile drilling.
• Set contents: 5 × wax‑filled diamond drills in popular tile drilling sizes for fixings
  and pipe penetrations (e.g. small to medium diameters – check pack for exact sizes such as 5 mm, 6 mm,
  8 mm, 10 mm, 12 mm).
• Suitable materials: Hard porcelain tiles, ceramic tiles, quarry tiles,
  marble, granite and similar dense, brittle surfaces.
  (Always test first on delicate or unusual materials.)
• Cooling system: Internal wax coolant core that melts with heat, providing
  lubrication and cooling at the cutting edge – optimised for dry drilling.
• Use: Rotary drilling only – no hammer action. Suitable for most
  corded and cordless drills with standard chucks.
• Application: Cleaner drilling of holes for wall plugs, screws, anchors and pipe/cable routes
  in tiled and stone finishes.

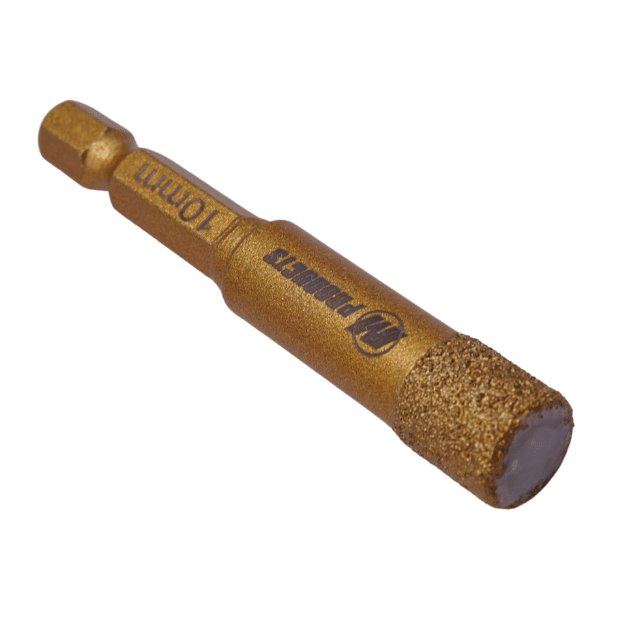

• Construction: Steel body with diamond‑impregnated cutting rim and wax‑filled core.
• Standards & safety: Designed to comply with EN 13236 and FM Products’ own
  QC regime; always observe maximum RPM and correct mounting/operation guidelines.
• Storage: Store drills in a dry, protected case, avoiding knocks to the diamond crown
  and prolonged exposure to high temperatures that might prematurely affect the wax.

FM Products Gold Range Wax Filled Diamond Dry Tile Drill 5 Piece Bit Set Features & Customer Benefits

• All‑in‑one professional tile drilling kit
  Five key diameters in one set cover most plug, screw and pipe hole requirements on tiled walls and floors,
  reducing the need to carry multiple separate bits.
• Dry drilling convenience
  Internal wax cooling eliminates the need for external water feeds, bottles or messy slurry,
  ideal for finished bathrooms, kitchens and living areas.
• Optimised for the hardest porcelain tiles
  Designed to deal with dense, vitrified porcelain and natural stone that quickly destroy
  standard carbide or basic tile drills.
• Cleaner, chip‑reduced holes
  Quality diamond crowns and correct technique help minimise edge chipping, providing
  a more professional finish around visible fixings and pipe penetrations.
• Gold Range reliability
  Part of FM Products’ premium Gold Range, giving installers confidence in consistent performance,
  durability and value on busy projects.

Frequently Asked Questions – FM Products Gold Range Wax Filled Diamond Dry Tile Drill 5 Piece Bit Set

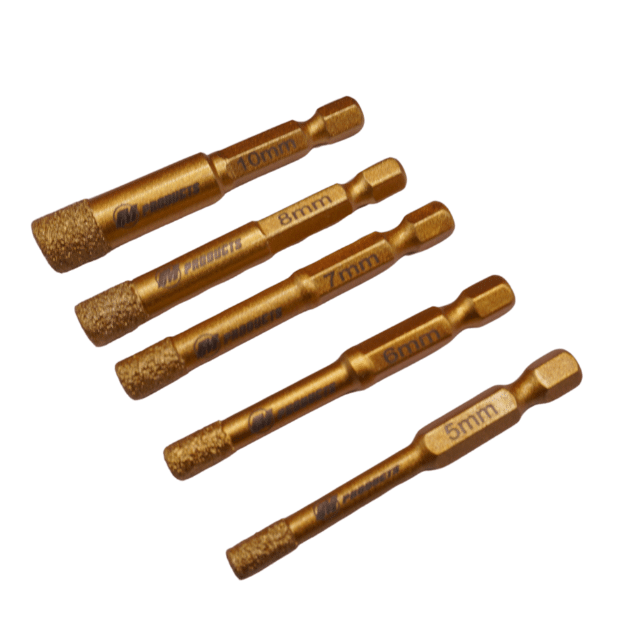

1. What sizes are included in the 5 piece Gold Range set?

The exact sizes may vary slightly by batch, but the set is typically configured to include the
most commonly used tile drilling diameters for fixings and pipe entries, for example
around 5 mm, 6 mm, 8 mm, 10 mm and 12 mm. Always check the
product packaging or description for the precise diameters included in your set.

2. Do I need to use water with these wax filled diamond tile drills?

No external water is required – these drills are specifically designed for dry drilling.
The internal wax coolant:

• Melts with heat to cool and lubricate the diamond crown,
• Helps control temperature and reduce wear, and
• Means you can drill in finished rooms without water, mess or slurry.

For very intensive drilling sessions, short rest periods between holes are recommended
to maximise bit life.

3. Can these drills be used on hammer drill settings?

Absolutely not. Hammer action must never be used with diamond tile drills. Always:

• Set the drill to rotary‑only mode, and
• Use moderate pressure and correct speed.

Hammering will damage the diamond crown, increase the risk of tile cracking
and significantly reduce tool life.

4. Are these suitable for all tile types, including very hard porcelain?

Yes, the FM Products Gold Range has been designed for very hard, high‑density tiles such as:

• Vitrified porcelain,
• Dense ceramics and quarry tiles, and
• Many natural stones including marble and granite.

For best results on the hardest materials:

• Use low to moderate drilling speed,
• Avoid excessive pressure,
• Use a gentle pecking action, and
• Allow bits to cool between holes when drilling repeatedly.

5. How many holes can I expect from each bit in the set?

The number of holes per bit depends on several factors:

• Tile hardness and thickness,
• Speed, pressure and technique used, and
• Whether the bit is regularly allowed to cool between holes.

When used correctly on hard porcelain, these Gold Range drills are designed to provide
multiple clean holes per bit, significantly outperforming basic tile or masonry bits.
Adopting good drilling practice will maximise life and performance.

6. Common Uses & How to Use the FM Products Gold Range 5 Piece Dry Tile Drill Set

Common Uses:

• Drilling plug and screw holes for bathroom and kitchen fittings into tiled walls.
• Creating neat openings for pipework and cable feeds through porcelain and ceramic tiles.
• Retrofitting extra shelving, brackets and accessories into existing tiled areas.
• Working on premium, large‑format porcelain and stone tiles where edge quality is important.
• General tiling, plumbing and electrical installation on hard tiled surfaces.

How to Use – Step‑by‑Step:

1. Select the correct diameter bit for your fixing or pipe (e.g. 6 mm for plug fixings, larger sizes for pipe sleeves).
2. Mark the drilling location using pencil or tape; apply a piece of masking tape if necessary to reduce skidding.
3. Fit the chosen bit into the drill chuck and set the drill to rotary‑only mode (no hammer).
4. Start drilling at low speed and at a slight angle to score the tile glaze, then gradually bring the drill upright as the bit begins to bite.
5. Maintain steady, moderate pressure, allowing the diamond crown and wax coolant to do the work; use a light pecking action on very hard tiles.
6. Once through the tile, either continue carefully for shallow depth or switch to a suitable masonry or wood drill to complete deeper holes into the substrate.
7. Allow the bit to cool between holes when drilling multiple fixings, especially in very hard porcelain.
8. Clean the bit after use and return it to its storage case to protect the diamond crown and ensure it is ready for the next job.
