FM Products Black Clip Link Single Pipe Clips – Interlocking Pipe Supports for Plumbing & Heating

FM Products Black Clip Link Single Pipe Clips are robust, interlocking
single pipe clips designed to securely support copper, plastic and multilayer pipes
in domestic and light commercial plumbing and heating systems. Their clever clip‑link design
allows individual clips to be snapped together in continuous runs, providing a fast,
neat and uniform pipe support solution for central heating, hot & cold services and pipework
to sanitaryware, radiators and appliances.

FM Products Black Clip Link Single Pipe Clips provide a simple, professional way to
secure and organise pipework along walls, ceilings and other building surfaces.

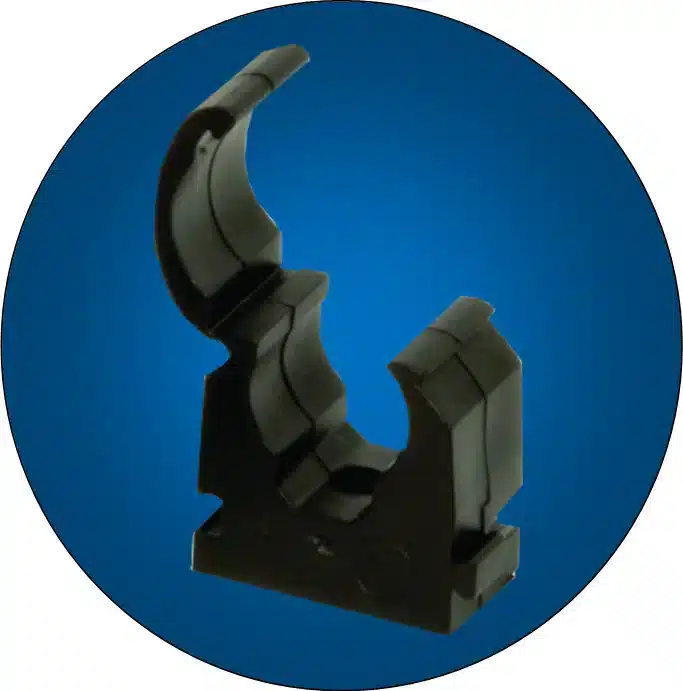

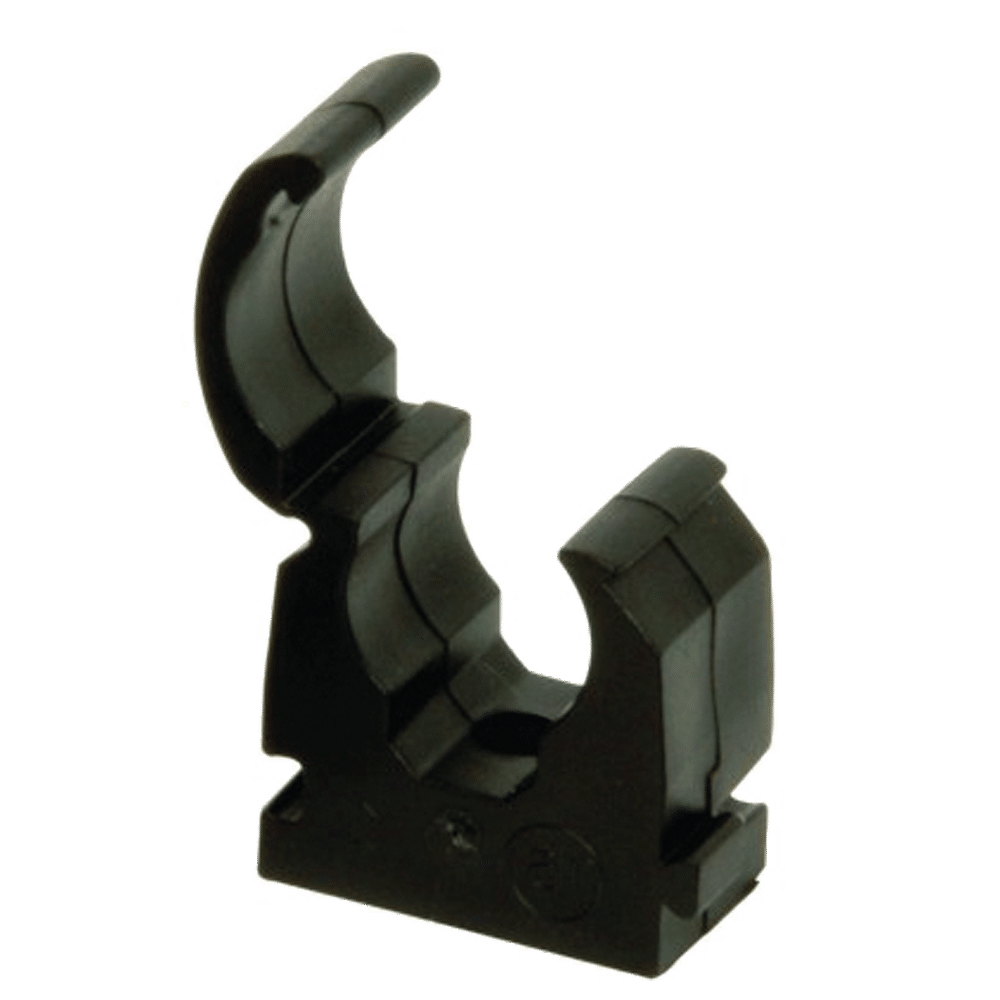

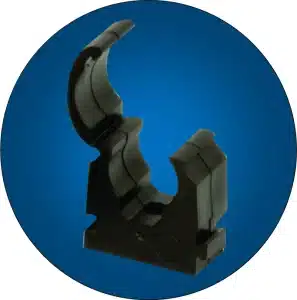

Each clip is moulded from tough black plastic and includes:

• A semi‑circular pipe cradle that securely holds a single pipe, and
• Side‑link features that allow adjacent clips to be snapped together in a straight line.

This allows installers to build up single or multi‑pipe runs – for example, flow and
return heating pipes, hot and cold services, or multiple radiator drops – with consistent
pipe spacing and alignment. The black finish is ideal for visible or semi‑concealed
runs in plant rooms, service cupboards and against dark backgrounds, and it also
helps conceal light dust and marking in service zones.

When fixed correctly at suitable centres (in line with BS EN 806‑2 and good practice
guidance for pipe support spacing), these clips provide reliable support for
horizontal and vertical pipework, helping to reduce:

• Pipe sagging or bowing,
• Unwanted movement and vibration, and
• Strain on fittings, joints and terminations.

Typical Use Cases

• Central heating circuits – clipping flow and return copper or plastic pipes
  from boilers to radiators, manifolds and cylinders.
• Hot and cold domestic services – supporting water supply pipes to
  baths, basins, sinks, WCs and showers.
• Appliance connections – neat pipe runs to combi boilers, cylinders, washing machines,
  dishwashers and sinks.
• Plant rooms and service cupboards – organising multiple pipe runs on
  pumped circuits, manifolds and distribution headers.
• General pipe routing – supporting exposed or semi‑concealed pipework on
  walls, battens and joists in domestic and light commercial installations.

Installation & Application Tips

• Substrate preparation:
  • Fix clips to solid backgrounds such as masonry, blockwork, timber studs, joists or
    plywood backing boards.
  • Ensure surfaces are sound, clean and capable of taking fixings (e.g. appropriate plugs
    in masonry, wood screws in timber).
• Choosing the correct clip size:
  • Select clips sized to match the outside diameter of the pipe
    (e.g. 10 mm, 15 mm, 22 mm – check product variant).
  • The pipe should snap in firmly without excessive force, and not rattle when clipped.
• Clip spacing (support centres):
  • Follow BS EN 806‑2 / BS 6700 guidance and manufacturer data for pipe support spacing.
    Typical examples (guide only – always confirm):
    • 15 mm copper horizontal: approx. 1.2 m centres.
    • 22 mm copper horizontal: approx. 1.5 m centres.
    • Plastic (PEX/MLCP): often requires closer centres due to greater flexibility
      (e.g. 0.5–0.8 m, depending on pipe spec).
  • Reduce spacing near bends, valves, tees and changes of direction for better support.
• Fixing the clips:
  • Position the clip, mark and drill the fixing hole, then secure with an appropriate screw
    and wall plug or wood screw, depending on the substrate.
  • Do not overtighten screws to the point of distorting the clip or crushing any
    underlying surface.
• Linking multiple clips:
  • Align adjacent clips and use the integral clip‑link feature to
    snap them together side‑by‑side.
  • This maintains consistent spacing between parallel pipes and creates a
    neat, modular support system.
• Clipping the pipe:
  • Once clips are fixed, simply push the pipe into the cradle until it
    snaps into place.
  • Work along the run, clipping at each support point to ensure a straight, well‑supported pipe.

Technical & Performance Overview

FM Products Black Clip Link Single Pipe Clips are designed as non‑metallic pipe supports
for internal plumbing and heating pipework. For systems that must meet specific standards
(e.g. BS EN 806 for potable water, BS 6700, or manufacturer’s guidance for
plastic pipe systems), always follow the pipe manufacturer’s support recommendations.

• Type: Single pipe clip with interlocking clip‑link feature
  for multi‑pipe runs.
• Material: Durable, impact‑resistant plastic (typically polypropylene or similar
  engineering plastic – check packaging).
• Colour: Black – ideal for plant rooms, service areas and dark backgrounds.
• Pipe compatibility: Suitable for copper, plastic and multilayer (MLCP) pipes in
  common plumbing sizes (e.g. 10, 15, 22 mm – verify variant before purchase).
• Fixing method: Screw‑fix through the base into timber, plugs in masonry, or other suitable anchors.
• Temperature & environment: Intended for indoor use in typical building service
  environments. Avoid continuous UV exposure and very high‑temperature surfaces beyond the material rating.
• Applications: Heating and potable water pipe runs, general plumbing support,
  domestic and light commercial installations.
• Standards & good practice: Use in systems designed to BS EN 806‑2 and relevant
  plumbing/heating codes, observing recommended support spacing and fixing methods.
• Storage: Store in a dry, cool location away from direct sunlight and high heat.

FM Products Black Clip Link Single Pipe Clips Features & Customer Benefits

• Clip‑link system for tidy multi‑pipe runs
  The interlocking design lets you snap clips together, keeping
  flow/return, hot/cold or multiple services neatly spaced and aligned,
  improving both appearance and maintenance access.
• Fast, simple installation
  Easy to fix and clip – ideal for speeding up first and second fix
  plumbing jobs while maintaining a professional finish.
• Versatile across common pipe materials
  Compatible with copper and most plastic pipe systems, reducing the need
  to stock multiple clip types for different jobs.
• Durable, corrosion‑proof and non‑conductive
  Unlike metal clips, these will not rust and offer
  electrical isolation between pipes and structure where needed.
• Professional appearance for visible pipework
  The black finish and consistent spacing give a clean, organised look
  in plant rooms, airing cupboards and service voids.

Frequently Asked Questions – FM Products Black Clip Link Single Pipe Clips

1. What pipe materials can I use with these clip link single pipe clips?

FM Products Black Clip Link Single Pipe Clips are suitable for most common
domestic plumbing and heating pipes, including:

• Copper tube (e.g. 10 mm, 15 mm, 22 mm),
• Plastic barrier pipes (PEX, PB, MLCP) within their normal operating temperatures, and
• Some other plastic or composite pipes of matching outside diameter.

Always match the clip size to the pipe’s outside diameter, and check with the
pipe manufacturer if there are any special support or temperature requirements.

2. How far apart should I space these pipe clips?

Support spacing depends on:

• Pipe material and diameter,
• Orientation (horizontal vs vertical), and
• Operating temperature.

As a guide, common recommendations (always confirm with standards and manufacturer data) are:

• 15 mm copper: up to approx. 1.2 m horizontal, 1.5 m vertical.
• 22 mm copper: up to approx. 1.5 m horizontal, 2.0 m vertical.
• Plastic pipes: often require closer centres (e.g. 0.5–0.8 m) due to greater flexibility.

Always refer to BS EN 806‑2 and the pipe manufacturer’s literature for
precise spacing and adjust accordingly.

3. Can I use these clips outdoors or in plant rooms exposed to sunlight?

These clips are primarily intended for indoor use. While they may tolerate
occasional exposure in sheltered areas, prolonged direct UV sunlight can degrade
some plastics over time. For fully external or UV‑exposed installations:

• Use clips explicitly rated for outdoor/UV‑resistant use, or
• Ensure pipework is boxed in or otherwise shielded from sunlight.

4. Do the clip link features affect thermal expansion of the pipes?

The clips hold pipes securely but do allow some degree of sliding movement along
the pipe axis as the system expands and contracts under temperature changes.
To manage expansion:

• Follow the pipe manufacturer’s guidelines for expansion allowances and
  fixed vs sliding supports.
• Allow for expansion loops or offsets where necessary on long runs.
• Avoid clamping pipes too tightly in places where movement is required.

5. What fixings should I use with these pipe clips?

Choice of fixing depends on the substrate:

• Masonry / concrete: suitable wall plugs and wood screws (e.g. 4–5 mm diameter).
• Timber studs/joists: wood screws sized to give adequate penetration for the load.
• Boarding / sheathing: fix into backing studs or noggins where possible; use appropriate fixings for the board type.

Ensure fixings are appropriate for the weight of the pipe when full and any
additional loads from insulation or lagging.

6. Common Uses & How to Use FM Products Black Clip Link Single Pipe Clips

Common Uses:

• Heating pipe runs from boiler to radiators and manifolds.
• Hot and cold feeds to kitchens, bathrooms and utility rooms.
• Pipework in airing cupboards, plant rooms and under‑stairs cupboards.
• Organising and supporting multiple parallel pipes on service runs.
• General plumbing where a neat, professional pipe support is required.

How to Use – Step‑by‑Step:

1. Determine pipe route and clip spacing in line with good practice and pipe manufacturer guidance.
2. Mark clip positions on the wall, batten or joist. For multi‑pipe runs, plan positions so linked clips align correctly.
3. Drill pilot holes where needed and insert wall plugs for masonry or prepare for wood screws in timber.
4. Fix the first clip with an appropriate screw, ensuring it is square and firmly seated.
5. Snap additional clips to the first using the clip‑link feature to build up a multi‑pipe run as required, fixing each in turn.
6. Once all clips are fixed, push the pipes into the clip cradles until they snap in securely.
7. Check that pipes are straight, evenly supported and free to expand along their length as required by the pipe system design.
