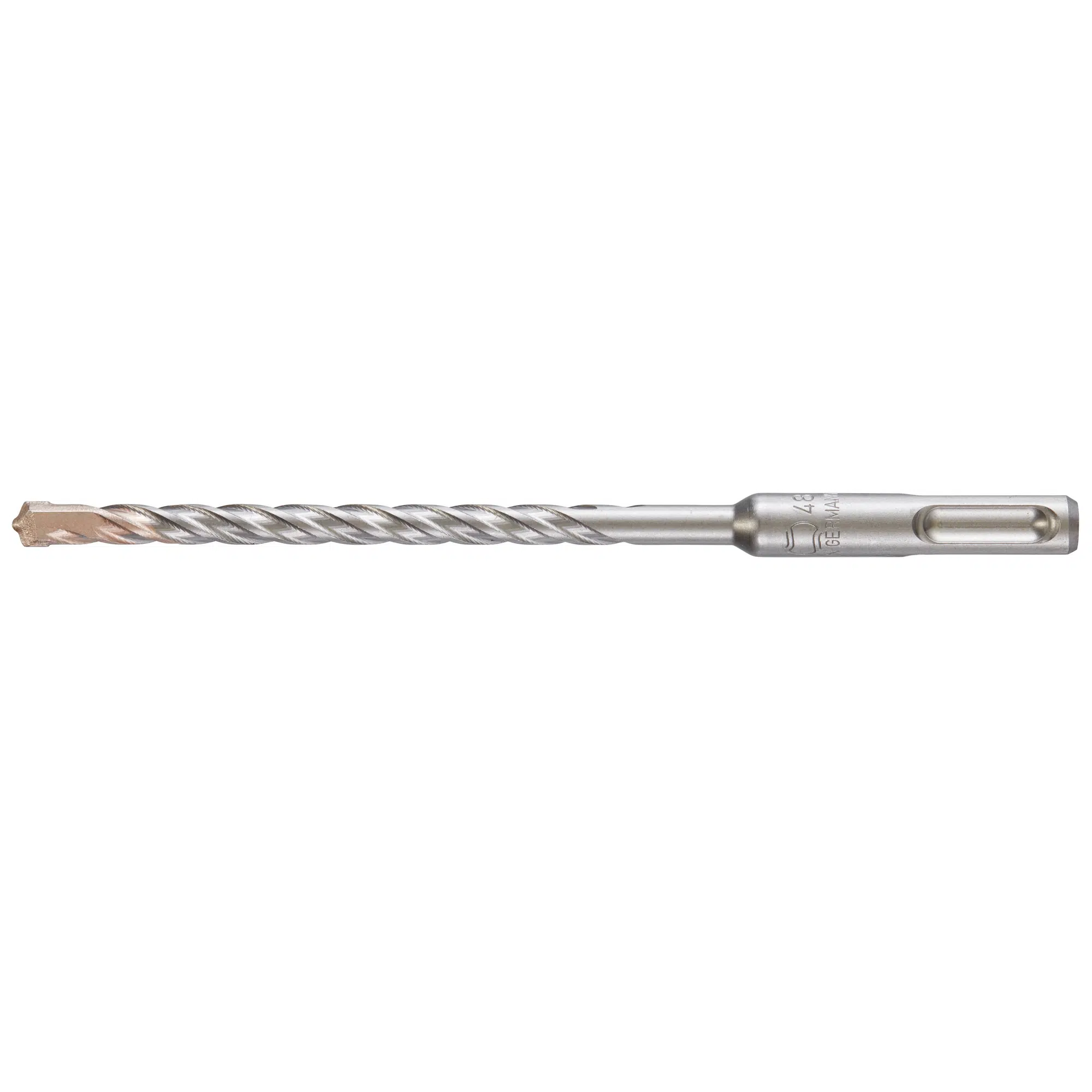

DeWalt Extreme SDS+ Plus 2 Cutter Drill Bit

DeWalt Extreme SDS+ Plus 2 Cutter Drill Bits are professional‑grade masonry bits engineered for fast, efficient drilling in concrete, brick, block and stone. Featuring a durable carbide 2‑cutter tip, optimised SDS+ shank and high‑volume flute design, they deliver rapid drilling performance, long life and excellent hole quality with SDS+ rotary hammer drills.

DeWalt Extreme SDS+ Plus 2 Cutter Drill Bits are designed for high‑performance drilling in concrete, masonry and stone using SDS+ rotary hammer drills. The robust 2‑cutter carbide tip provides a tough cutting edge that withstands repeated impact, while the chisel‑shaped profile delivers fast material removal and consistent hole diameter. When using these drill bits, it’s essential to select appropriate drill chuck options for standard bits to ensure a secure fit and optimal performance. Compatibility with various drill chucks can enhance the efficiency of the drilling process, providing users with a range of flexible choices. Additionally, selecting the right chuck helps prevent slippage, allowing for precise drilling every time.

The hard‑wearing tungsten carbide insert is brazed into a hardened steel body, providing strong resistance to heat and abrasion under heavy use. The optimised spiral flute design efficiently channels dust and debris out of the hole, reducing friction, helping to prevent jamming and enabling faster progress, particularly in deeper drilling.

The SDS+ shank ensures secure engagement in SDS+ hammer drills, allowing the bit to slide and hammer under impact while remaining firmly locked in the chuck. This maximises energy transfer and minimises the risk of bit slippage, helping deliver consistent performance and reduced operator fatigue.

These bits are suitable for everyday professional tasks such as plug holes, anchor fixings and clearance drilling in concrete and masonry. For frequent heavy drilling in very hard or reinforced concrete, consider appropriate DeWalt SDS+ bits rated for rebar contact as per DeWalt guidelines.

Typical Use Cases

• Drilling plug and screw holes in brick, block and concrete for general fixings.
• Forming anchor holes for mechanical and chemical anchors.
• Drilling for pipe clips, cable trays, trunking, channel and brackets.
• General construction, refurbishment and M&E installation work in masonry.
• Producing clearance holes for light penetrations through masonry and concrete (within size and depth limits).

DeWalt Extreme SDS+ Plus 2 Cutter Drill Bit Features

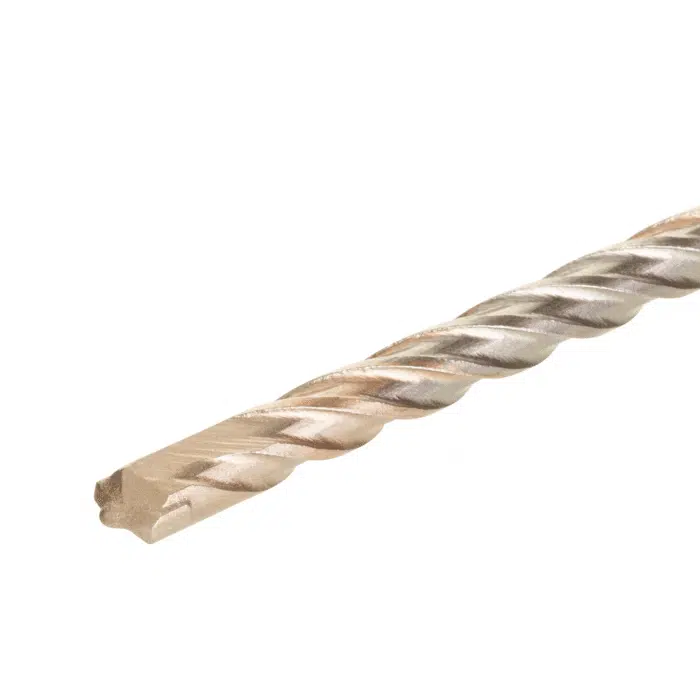

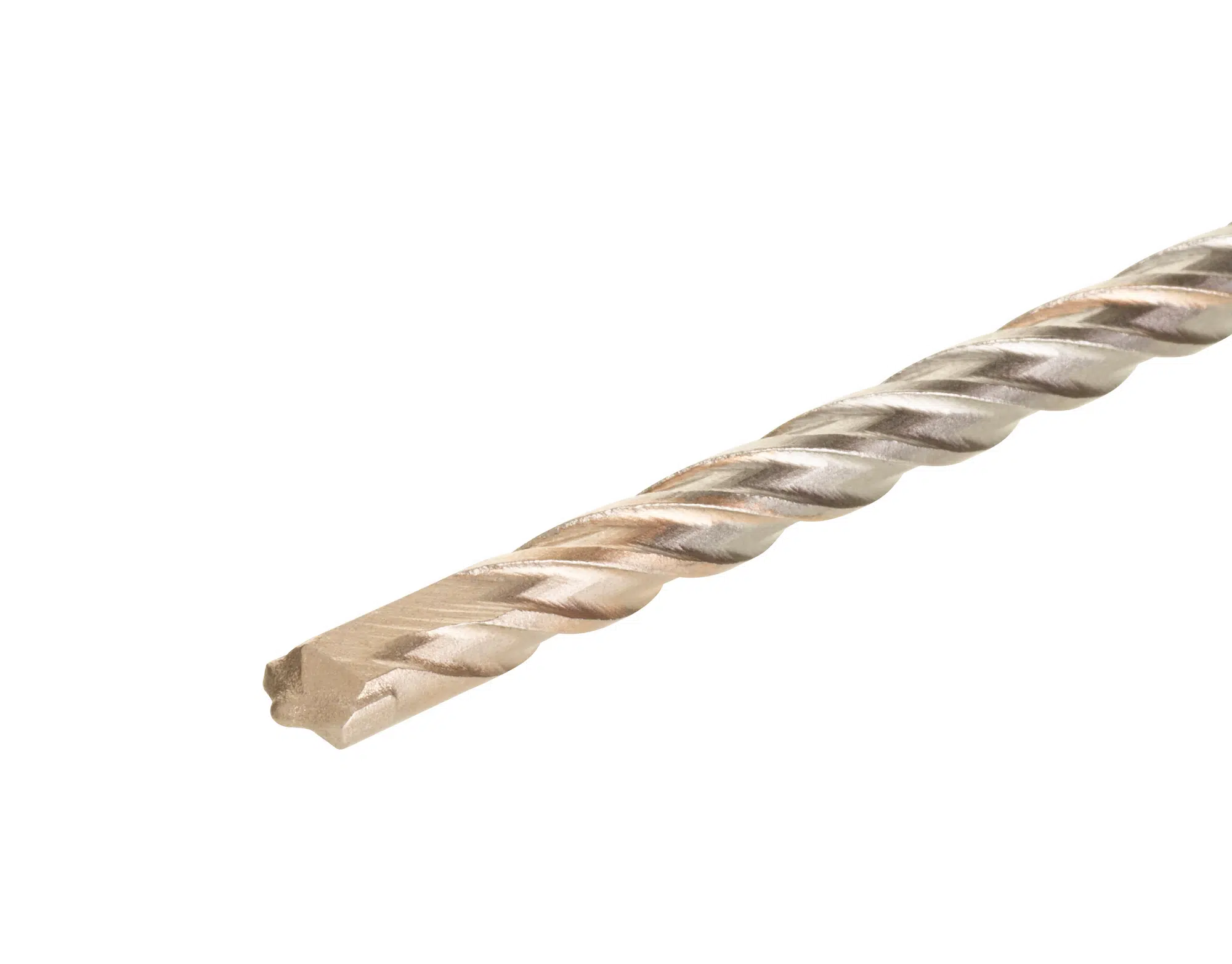

• 2‑cutter carbide tip – tough tungsten carbide cutting edges for fast drilling and long life.
• Optimised tip geometry – designed for efficient impact transfer and material removal.
• High‑volume spiral flutes – rapid dust evacuation for smoother drilling and reduced bit binding.
• SDS+ shank – 10mm nominal, 4‑slot SDS+ interface for secure hammer action in SDS+ rotary drills.
• Hardened steel body – impact‑resistant construction for heavy site use.
• Wide size range – common diameters and lengths to suit standard plugs, frame fixings and anchors.
• DeWalt Extreme performance – part of the DeWalt Extreme accessory range, trusted by professional trades.

Technical Information

• Product type: SDS+ masonry drill bit – 2‑cutter.
• Brand: DeWalt – Extreme SDS+ range.
• Shank type: SDS+ (10mm nominal, 4‑slot) for SDS+ rotary hammer drills.
• Tip material: Tungsten carbide 2‑cutter head.
• Body material: Hardened alloy steel.
• Flute design: Spiral / helix flutes for high‑efficiency dust removal.
• Suitable substrates: Concrete, brick, blockwork, masonry and stone (within hardness and drill power limits).
• Typical diameters: Common fixing sizes (e.g. approx. 4–16mm; check listing for actual size range stocked).
• Typical lengths: Short, standard and long reach (e.g. working/overall lengths around 110mm, 160mm, 210mm, 260mm, 310mm – check product options).
• Tool compatibility: SDS+ rotary hammer drills (corded and cordless) from DeWalt and other major brands.
• Primary use: Hammer drilling for plug, anchor and fixing holes in masonry and concrete.

For exact diameter, working length, overall length, and recommended operating parameters, refer to the specific DeWalt Extreme SDS+ Plus 2 Cutter bit packaging or datasheet.

Best Practice & Usage Tips

1. Use an SDS+ rotary hammer: These bits are made for SDS+ hammer drills only. Do not use in standard 3‑jaw chucks without a suitable SDS+ adaptor (and expect reduced performance).
2. Set the correct mode: Use hammer + rotary mode for masonry drilling. Use rotary‑only mode only when specified (e.g. fragile masonry tiles).
3. Select the right diameter: Match bit size to the plug or anchor manufacturer’s instructions (e.g. 5–6mm for small plugs, 7–8mm for heavy‑duty plugs – always check).
4. Drill square and steady: Hold the drill perpendicular to the surface and apply firm, consistent pressure – do not force the bit.
5. Clear dust from deeper holes: For deeper drilling, periodically withdraw the bit slightly to help remove dust and prevent overheating or binding.
6. Beware of rebar: In reinforced concrete, hitting rebar can damage the carbide tip. If you strike steel, stop and switch to a suitable metal drilling solution as per site method.
7. Clean the hole before fixing: Blow or brush out dust before inserting plugs, anchors or resin for maximum holding strength.

Always follow health & safety guidelines – wear safety glasses, hearing protection, gloves and a dust mask when drilling masonry.

Frequently Asked Questions – DeWalt Extreme SDS+ Plus 2 Cutter Drill Bit

1. What is the difference between SDS+ and SDS Max?

SDS+ bits (like this DeWalt Extreme 2 Cutter) have a smaller 10mm shank and are used with light to medium‑duty rotary hammer drills. SDS Max bits have a larger shank and are designed for heavy‑duty demolition and larger diameter drilling. SDS+ bits are not compatible with SDS Max chucks.

2. Can I use these bits in a normal drill?

They are designed for SDS+ rotary hammer drills. You can use them in a standard drill only with an SDS+ adaptor, but you will not get the same hammer performance and may shorten bit and tool life.

3. Are these bits suitable for reinforced concrete?

They are suitable for concrete, but frequent or prolonged drilling through rebar (reinforcing steel) can damage the tip. If you expect heavy rebar contact, consider DeWalt bits specifically rated for that use and follow DeWalt guidance.

4. Which size bit do I need for common wall plugs?

Typical guidance (always confirm with the plug manufacturer):
• Yellow plug: usually 5mm bit
• Red plug: usually 6mm bit
• Brown plug: usually 7mm bit
• Blue / heavy‑duty plugs: often 8–10mm bits
Always check the plug or fixing packaging.

5. How do I extend the life of my SDS+ drill bits?

Use an appropriate SDS+ hammer drill, avoid overheating (clear dust from deep holes), do not force the bit, and avoid extended contact with rebar. Store bits dry and protect the carbide tips from impact damage when not in use.

DeWalt Extreme SDS+ Plus 2 Cutter Drill Bit Common Uses / How to Use

Common Uses

• Drilling plug holes for shelves, brackets, rails and fixtures.
• Creating holes for anchor bolts, shield anchors and frame fixings.
• Fixing pipe clips, cable saddles, trunking and Unistrut to masonry.
• General construction and refurbishment drilling in brick, block and concrete.

How to Use – Step‑By‑Step Summary

1. Select size: Choose the DeWalt Extreme SDS+ 2 Cutter bit diameter and length to match your fixing and required depth.
2. Fit the bit: Insert the SDS+ shank into the drill chuck until it clicks and locks in place.
3. Set mode: Set the drill to hammer + rotary mode.
4. Mark the hole: Mark the drilling point; start the drill at low speed to avoid wandering.
5. Drill: Increase speed, apply steady pressure, and periodically withdraw the bit slightly on deep holes to clear dust.
6. Check depth: Use the drill’s depth stop or tape on the bit to reach the correct embedment depth.
7. Clean & fix: Clean out the hole, then insert the plug/anchor and install your fixing.
