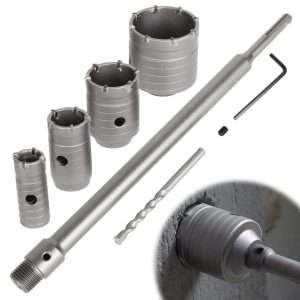

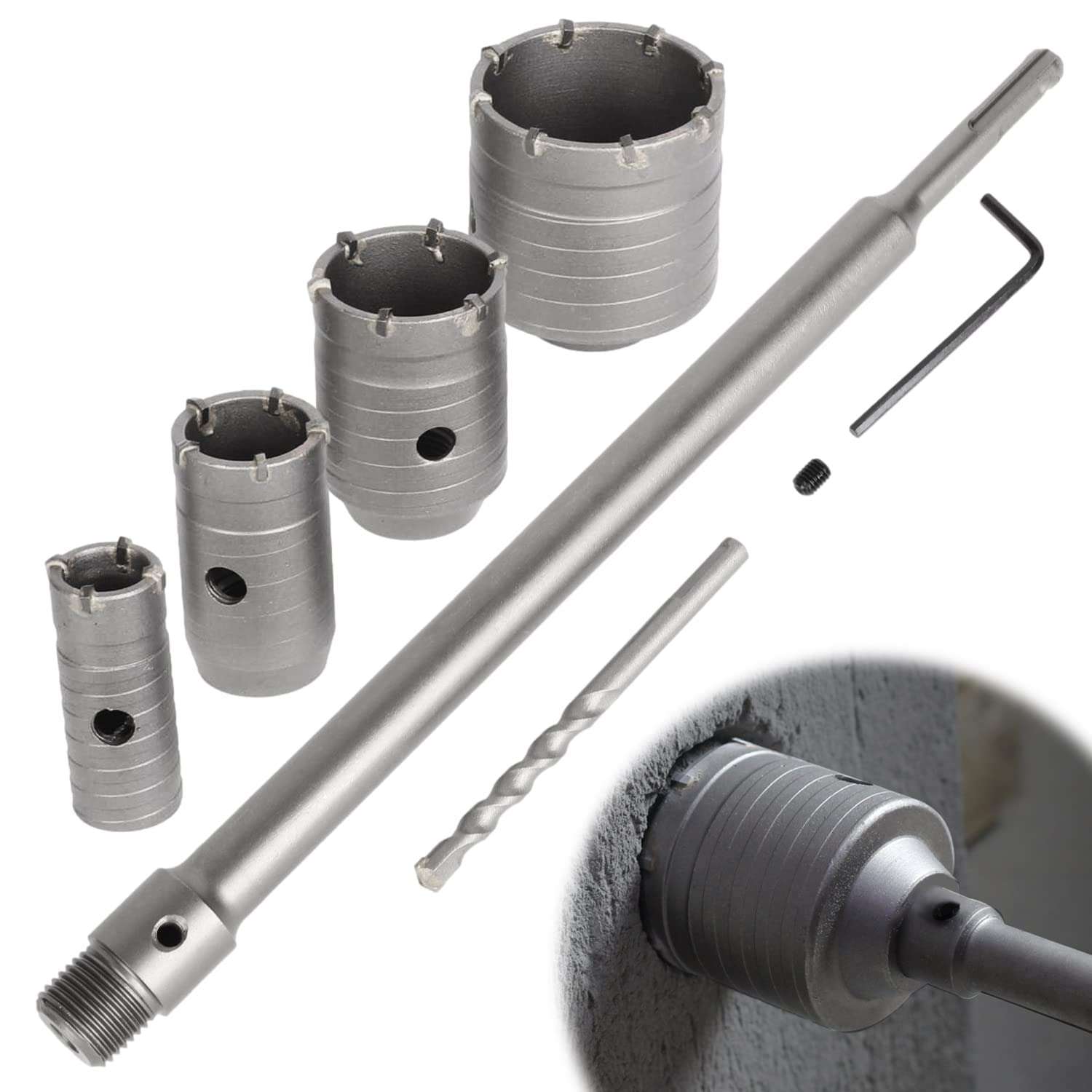

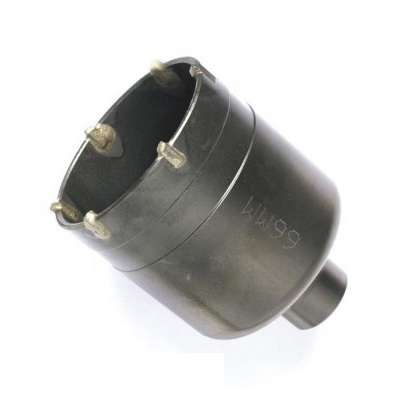

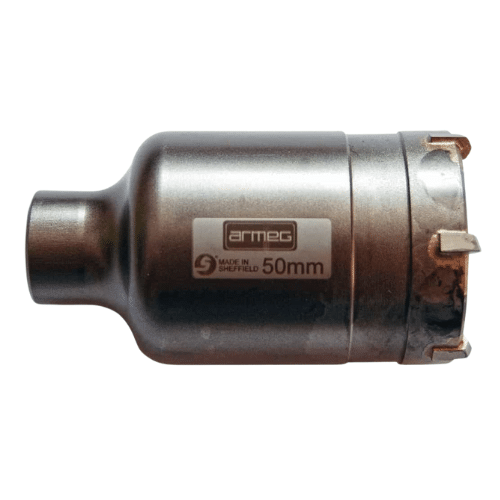

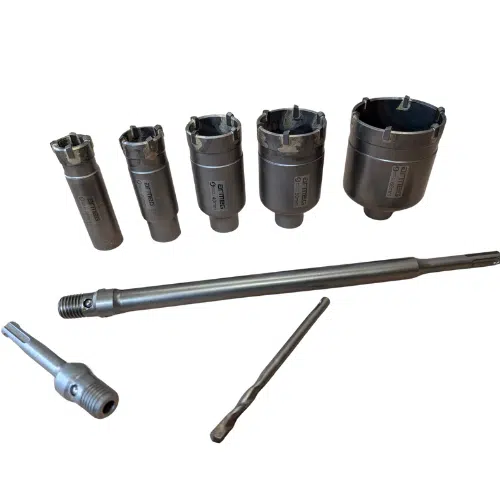

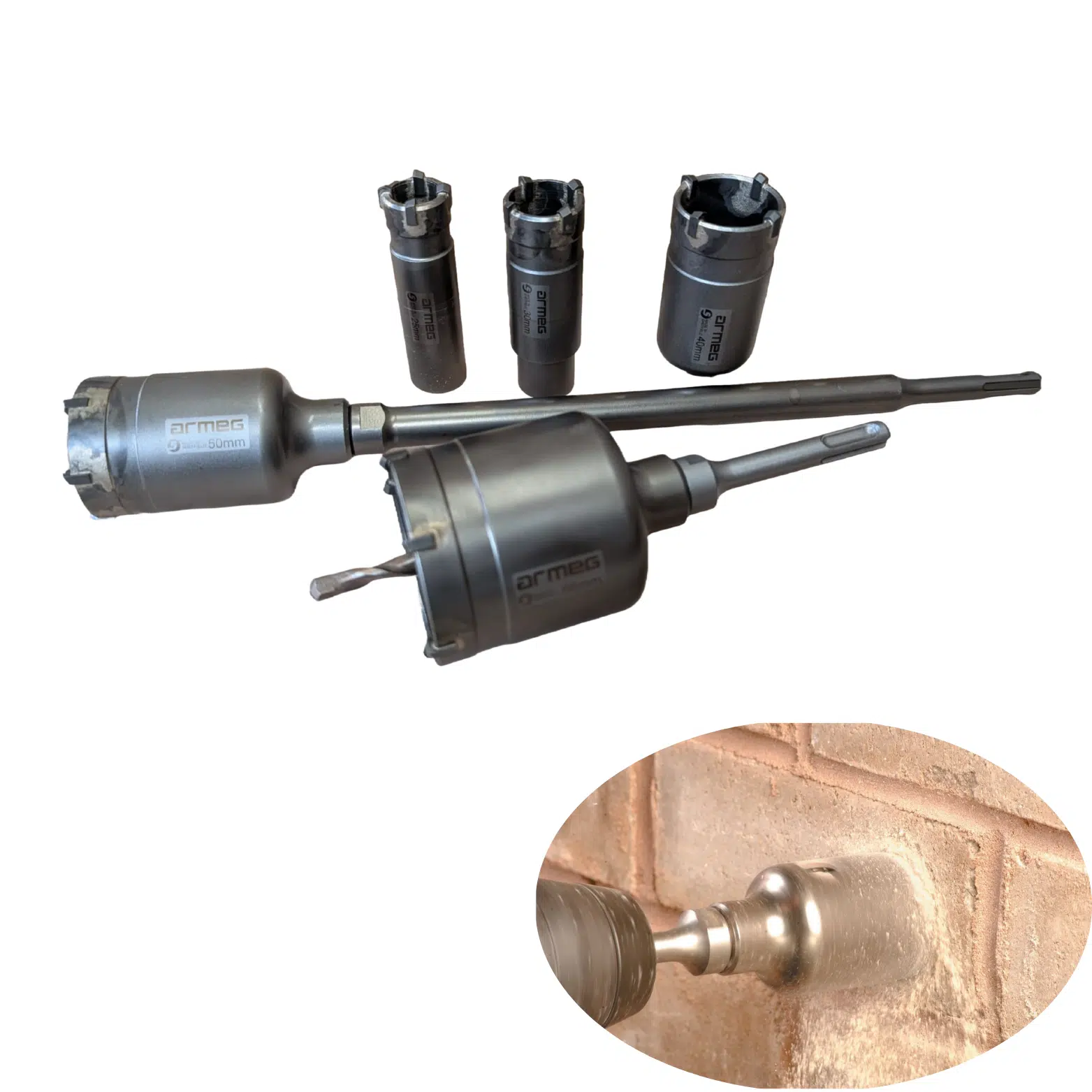

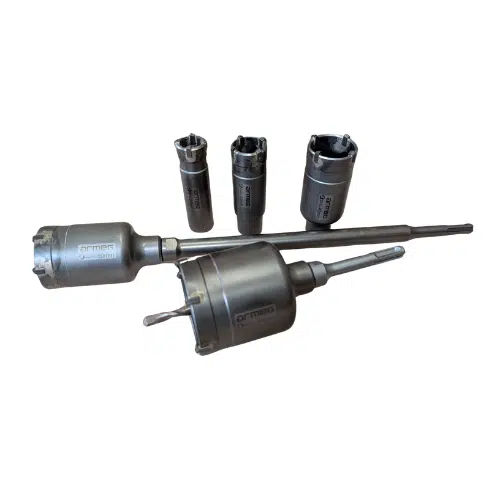

Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter

The Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter is a
professional tungsten carbide tipped (TCT) core cutter designed for rapid, clean coring in brick,
block and lightweight masonry. Its lightweight body and aggressively ground TCT segments deliver
high drilling speeds with reduced load on the drill, making it ideal for electricians, plumbers,
heating engineers and general contractors who regularly core holes for pipes, cables and sockets.

The Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter is purpose‑designed for
dry coring in general masonry. Unlike diamond cores which are often slower on lightweight materials,
this TCT (tungsten carbide tipped) cutter uses aggressive, impact‑resistant teeth to break and
remove masonry efficiently, particularly when used with a powerful SDS‑plus or SDS‑max rotary hammer in
rotary-only or rotary-percussion mode, as specified by Armeg for the specific cutter and arbor.

The lightweight core barrel reduces rotating mass, making the core easier to handle and kinder to
the drill motor compared with heavier traditional cores. This design is especially advantageous on overhead
work and repetitive coring, helping to reduce operator fatigue and increase productivity.

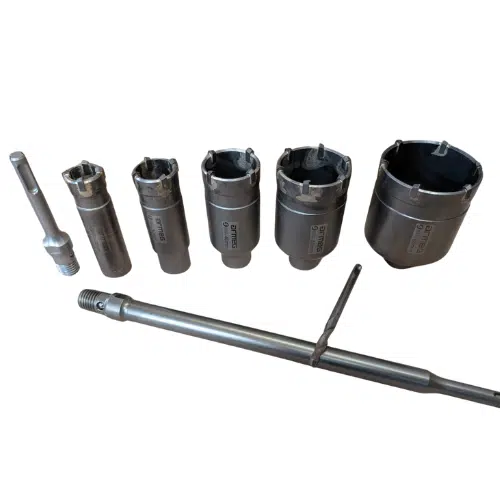

Available in a range of popular diameters (e.g. for 22 mm, 32 mm, 40 mm, 52 mm and larger
pipe and cable sizes – check the specific product option for exact diameter), the Armeg Lightweight High-Speed
TCT Masonry Core Drill Bit Cutter allows installers to quickly create:

• Through‑wall holes for water pipes, heating flow/return and waste pipes,
• Ventilation openings for extractor fans and ducting,
• Access routes for cable bundles and conduits,
• Recesses for back boxes and specialist hardware (where size permits).

Armeg’s TCT masonry cores are typically engineered and tested to meet relevant European safety requirements
for rotary and percussion drilling tools (e.g. in line with EN 847‑1 principles for rotating tooling
and the safety expectations of EN standards for drilling accessories). Always consult the Armeg technical
datasheet for your specific core diameter and arbor combination.

Typical Use Cases

• Plumbing & heating installations – drilling pipe penetrations through brick and block
  walls for copper, plastic and multi‑layer pipes (flow/return, wastes, overflows, condense lines).
• Electrical & data services – coring holes for cable bundles, trunking routes and conduits
  through internal and external walls.
• Ventilation & HVAC – forming openings for extractor fans, trickle vents and small ducts
  in bathrooms, kitchens and utility rooms (subject to correct core diameter selection).
• General construction – creating service penetrations in new build and refurbishment
  projects for a variety of building services.
• Domestic and light commercial work – ideal for brick, block and lightweight concrete
  found in most UK housing and small commercial projects.

Installation & Application Tips

• Selecting the right equipment:

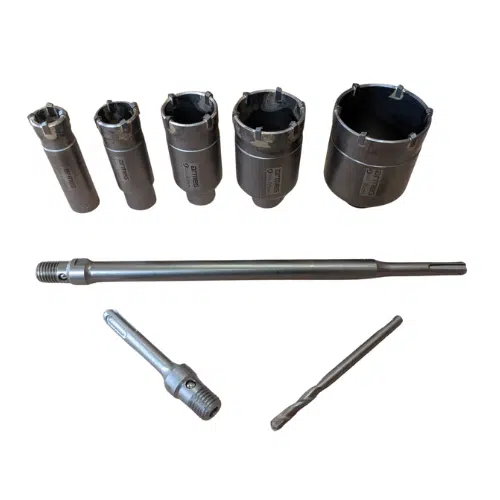

  • Pair the TCT core cutter with the correct Armeg arbor and pilot drill as specified by Armeg
    for that core diameter.
  • Use a robust rotary hammer or heavy‑duty drill with appropriate power and clutch
    protection, observing the tool manufacturer’s recommendations for core drilling.
  • Check whether the core is to be used in rotary‑only or rotary‑percussion mode –
    Armeg typically specifies the correct setting for each product; never use hammer mode
    against manufacturer advice.
• Substrate assessment:
  • Designed primarily for brick, block and lightweight concrete/masonry.
  • Not generally recommended for heavily reinforced concrete or hard natural stone; in such cases,
    use appropriate diamond cores or specialist drilling solutions.
  • Check for hollows, cavities and weak materials, which may affect performance and anchorage.
• Marking and pilot drilling:
  • Accurately mark the hole centre on the wall.
  • Many Armeg core systems use a central pilot drill which both locates the core and helps
    stabilise it; ensure the pilot drill is correctly fitted and protrudes slightly beyond the core teeth.

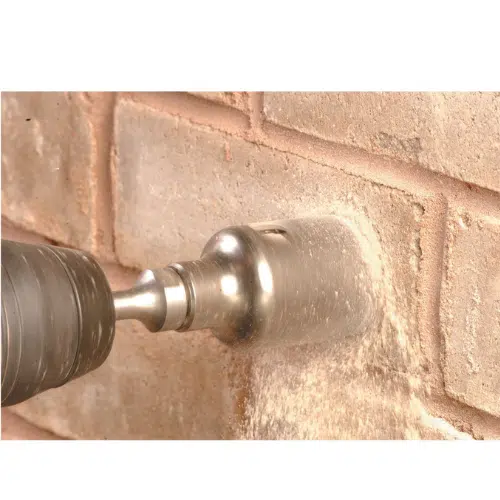

• Coring technique:
  • Hold the drill firmly with both hands and start at low speed to establish the cut.
  • Once the core starts to bite, maintain a steady, even pressure – do not force the cutter.
  • Periodically withdraw the core slightly while drilling to allow dust and debris to clear
    from the flutes and reduce heat build‑up.
  • On deeper holes, consider drilling from both sides of the wall where practical, to reduce
    breakout and maintain control.
• Breaking out the slug:
  • Once the core has cut through the wall, the masonry “slug” will remain in the barrel.
  • Carefully remove the core from the drill (disconnect from power first) and tap out the slug
    using an appropriate tool, avoiding impact on the TCT teeth.
• Safety considerations:
  • Always wear eye, ear and dust protection; consider an appropriate mask when coring in
    dusty materials.
  • Ensure the drill has a working safety clutch to reduce the risk of wrist injury if the core
    binds.
  • Before drilling, use a cable/pipe detector to avoid hidden services.

Technical & Performance Overview

Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutters are professional tools designed in line with
European safety expectations for rotary drilling and coring accessories and Armeg’s own internal
quality control standards. For precise specifications, always refer to the Armeg technical datasheet
for the specific core diameter and arbor system.

• Type: Tungsten Carbide Tipped (TCT) masonry core drill bit cutter, lightweight design.
• Application: High‑speed dry coring in brick, block and lightweight masonry for
  service penetrations.
• Construction: Lightweight steel barrel with braised/soldered TCT cutting teeth and
  drive interface for compatible arbors.
• Diameters: Available in multiple core sizes (e.g. typical pipe/cable diameters);
  check the individual product for exact cutting diameter and length.
• Effective cutting depth: Dependent on core length – verify on product label/technical data.
• Recommended drive: Suitable SDS‑plus / SDS‑max or standard arbor system (depending
  on variant) fitted to a rotary hammer or heavy‑duty drill within Armeg’s specified power range.
• Substrate suitability: Clay bricks, concrete blocks, lightweight concrete and general masonry;
  not intended for heavy reinforced concrete or dense stone with rebar content.
• Standards & safety: Manufactured to comply with applicable European safety principles (e.g.
  EN 847‑1 for rotating woodworking and similar tools adapted to drilling accessories). Follow Armeg
  operating instructions and tool manufacturer guidance at all times.
• Storage: Store in a dry, clean environment, protecting the TCT teeth from impact
  and corrosion.

Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter Features & Customer Benefits

• Fast drilling on real‑world masonry
  Purpose‑designed TCT teeth and lightweight construction enable rapid coring in typical
  UK brick and block, helping you complete more holes per day.
• Reduced load on drill and operator
  The lightweight core barrel lowers rotational mass, making the drilling process
  easier on your machine and your arms, especially in overhead or awkward positions.
• Professional‑grade durability
  High‑quality TCT teeth stand up to abrasive masonry better than basic cores, providing
  longer life and fewer change‑outs.
• Versatile for multiple trades
  Equally at home on plumbing, heating, electrical and ventilation jobs, reducing the number
  of different coring tools you need to carry.
• Compatible with proven arbor systems
  Designed to work with Armeg’s own arbor and pilot systems, providing reliable centring and
  drive for safer, more accurate coring.

Frequently Asked Questions – Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter

1. What type of drill should I use with this Armeg TCT masonry core cutter?

Use a powerful rotary hammer or heavy‑duty drill that:

• Is compatible with the arbor shank (e.g. SDS‑plus or SDS‑max),
• Has a working safety clutch, and
• Is rated for core drilling in masonry at the chosen diameter.

Always follow both the drill manufacturer’s and Armeg’s instructions regarding mode
selection (rotary vs rotary‑percussion) for the specific core size.

2. Can I use the Lightweight High-Speed TCT Masonry Core in reinforced concrete?

These TCT masonry cores are primarily intended for non‑reinforced or lightly reinforced masonry
such as brick and block. For heavily reinforced concrete or structural elements:

• Avoid using TCT cores that may snag on rebar, causing kickback or tooth damage.
• Use specialist diamond core drills or wet core systems specifically designed for
  reinforced concrete.

3. Do I need a pilot drill when using this core cutter?

In most cases, yes. Armeg typically specifies use of a pilot drill in conjunction with the correct arbor
to:

• Accurately locate and guide the core at the start of the hole, and
• Improve stability and accuracy during drilling.

Always use the recommended Armeg arbor and pilot for the core diameter you have selected.

4. Should I drill from one side or from both sides of the wall?

Where access is possible, drilling from both sides of the wall can:

• Reduce the risk of breakout and spalling on the exit face,
• Improve overall hole quality, and
• Make coring deep walls more controlled.

Common practice is to core most of the way from one side, then complete the hole from
the other side using the pilot hole as a guide.

5. How do I extend the life of my Armeg TCT masonry core?

To maximise tool life:

• Use the core only on appropriate brick, block and lightweight masonry
  (avoid heavy reinforced concrete and stone).
• Allow the drill to do the work – do not overload or overheat the core by forcing the cut.
• Periodically withdraw the core during drilling to clear dust.
• Avoid striking metal fixings or rebar hidden in the wall.
• Store the core properly to protect the TCT teeth from impacts.

6. Common Uses & How to Use the Armeg Lightweight High-Speed TCT Masonry Core Drill Bit Cutter

Common Uses:

• Through‑wall drilling for central heating and hot/cold water pipes.
• Core holes for waste outlets and boiler condensate drains.
• Cable and conduit penetrations for electrical, data and alarm systems.
• Openings for extractor fans and small ducts (size permitting).
• General services coring in domestic and light commercial builds.

How to Use – Step‑by‑Step:

1. Confirm the correct core diameter, arbor and pilot drill for your required hole size.
2. Fit the core cutter securely to the Armeg arbor, ensuring all threads and locking mechanisms are tight.
3. Insert the arbor shank into your compatible drill (e.g. SDS‑plus) and ensure it is fully engaged.
4. Mark the hole centre and check for hidden services with a cable/pipe detector.
5. Set the drill to the recommended mode (rotary or rotary‑percussion) as per Armeg guidance for that core.
6. Start drilling at low speed to establish the cut, then increase speed and apply steady pressure.
7. Periodically back the core out slightly to clear debris and reduce heat build‑up.
8. Once the wall is cored, disconnect power, remove the core and tap out the slug carefully.
9. Inspect the core teeth and clean the barrel before storing safely for the next use.
