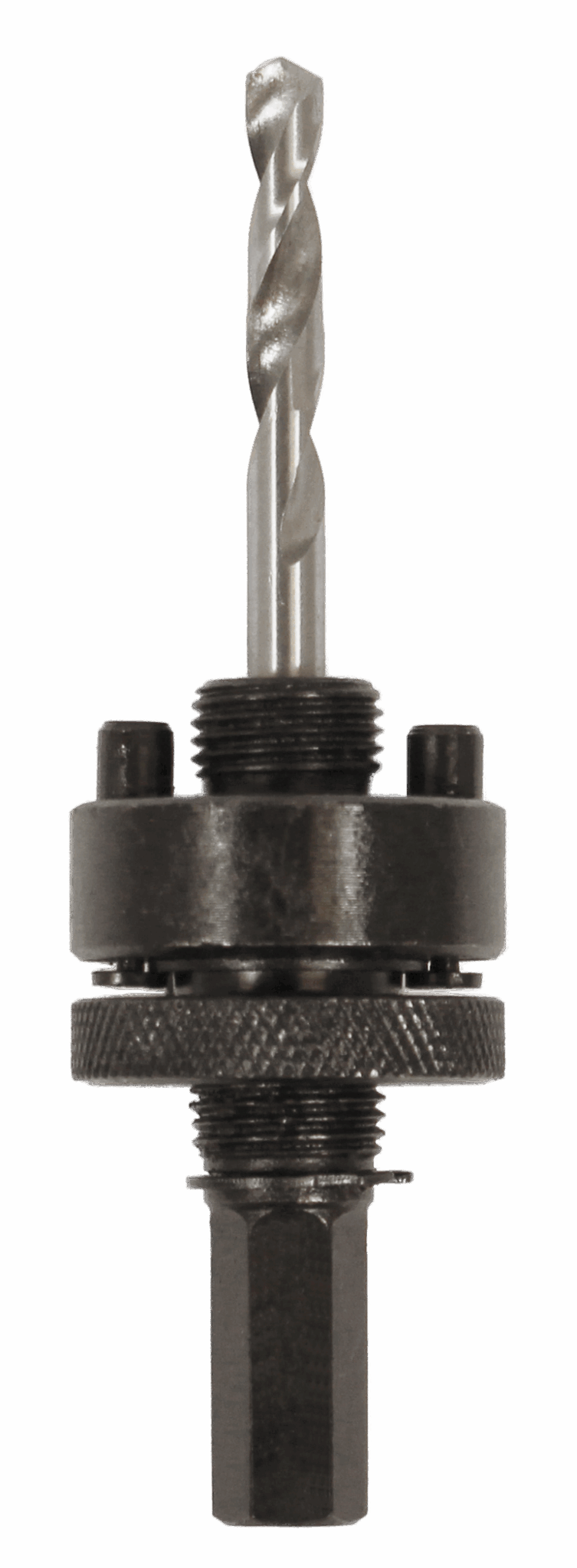

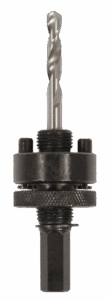

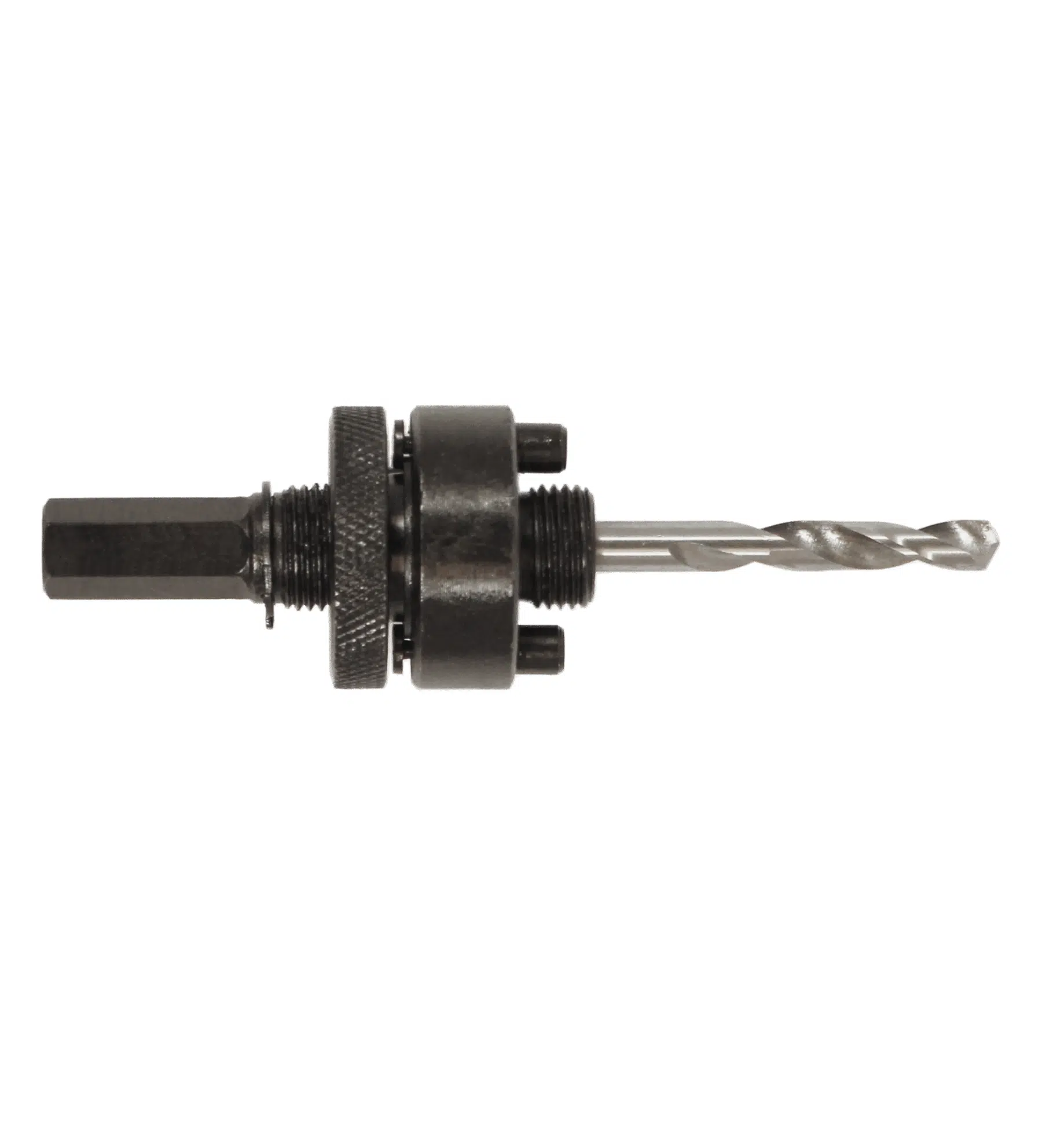

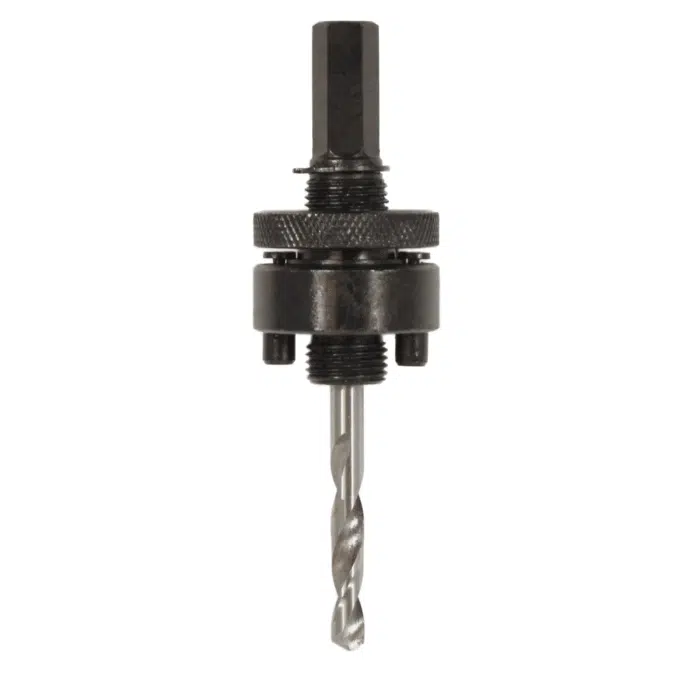

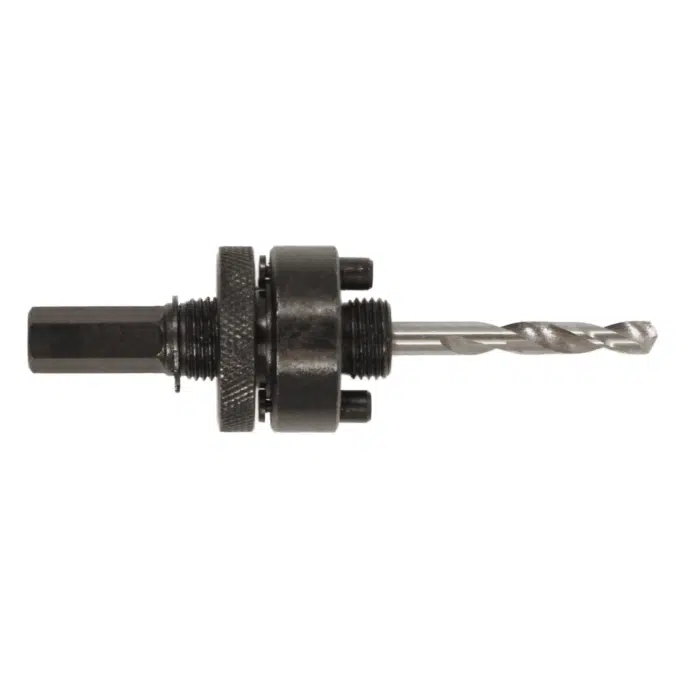

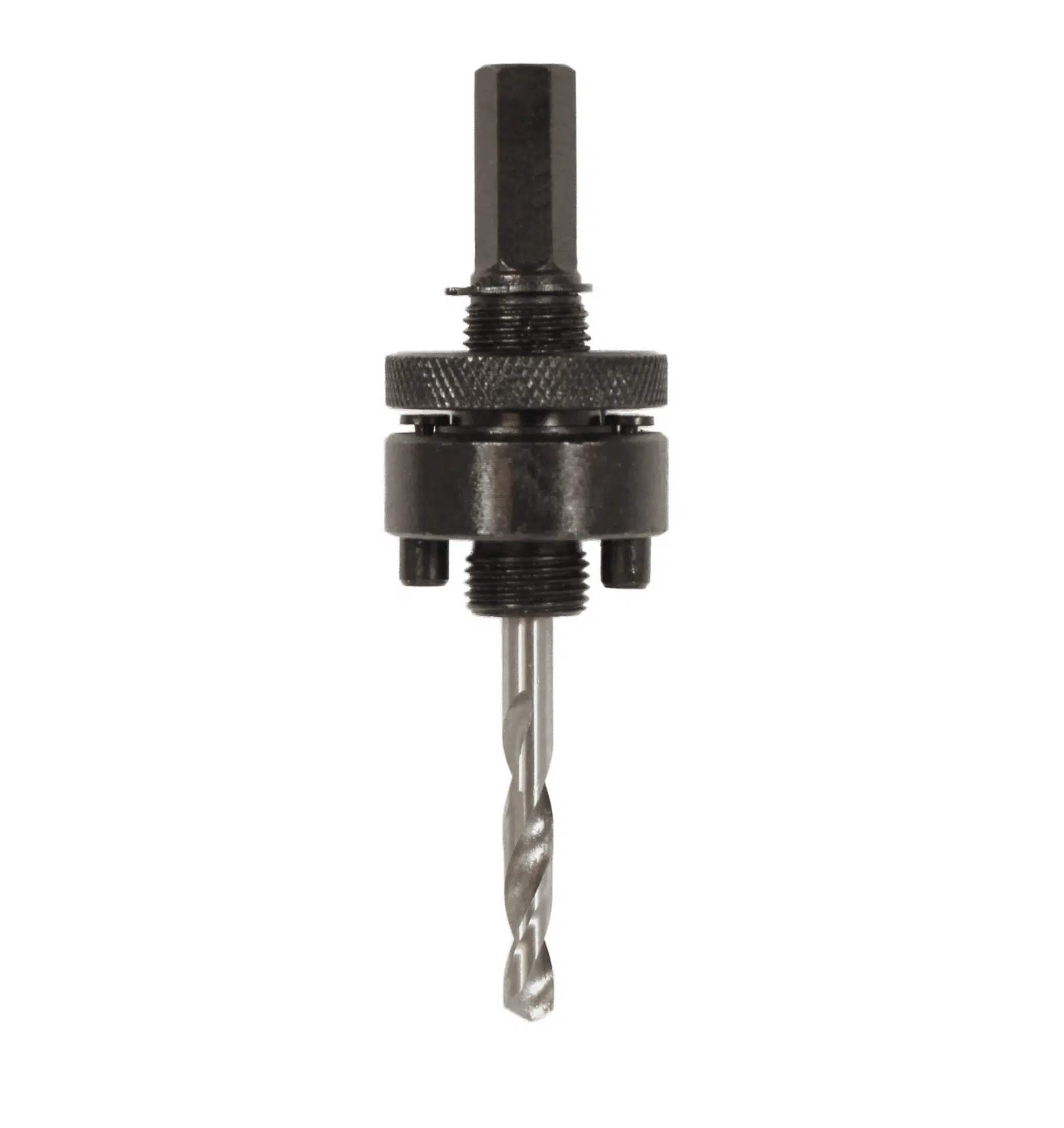

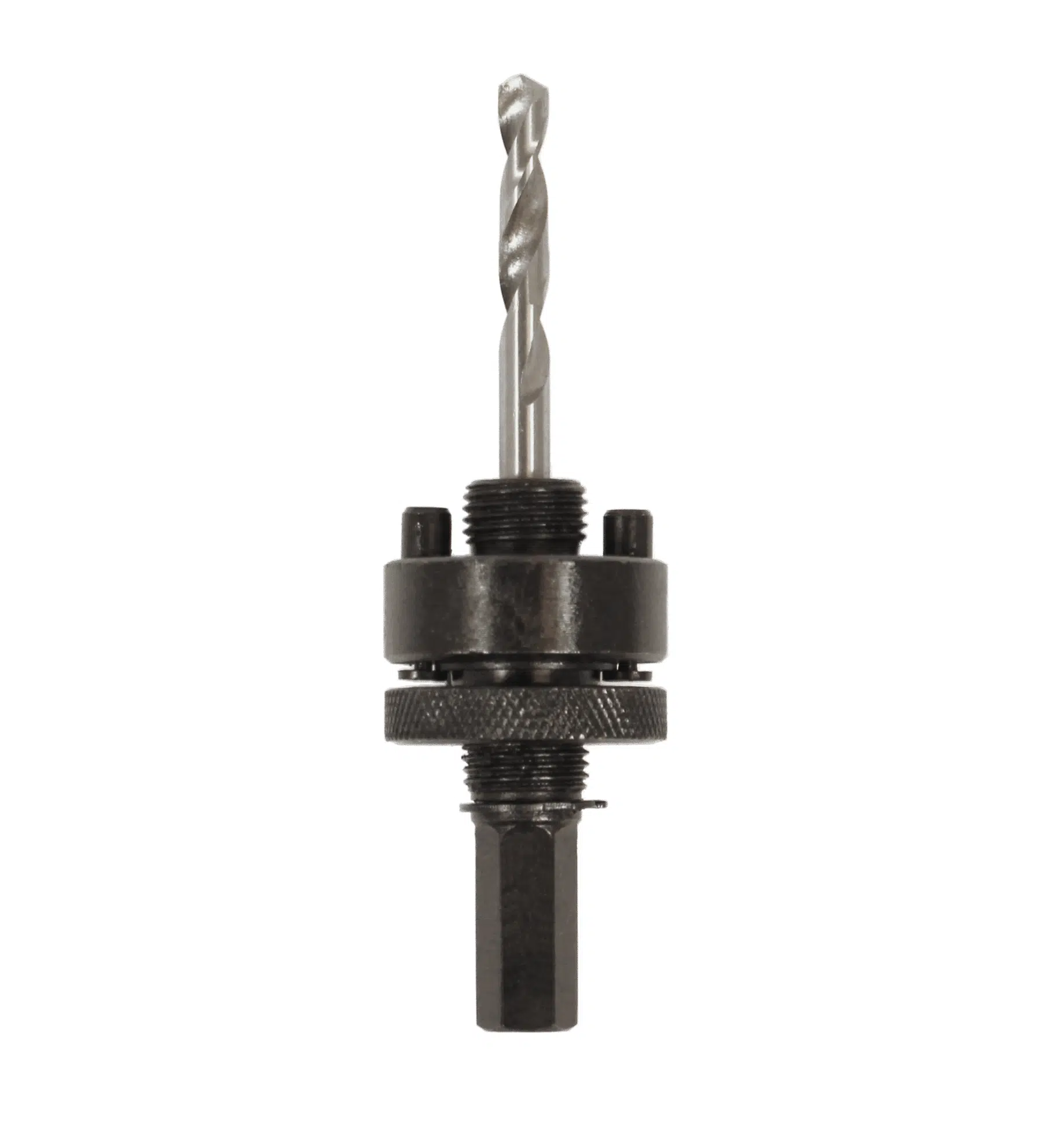

Designed for use with Abracs bi‑metal holesaws and many other compatible brands, these arbors are manufactured with precise threads and drive pins that lock into the holesaw’s back plate. This provides a strong, positive drive that transfers torque efficiently and reduces the risk of the saw loosening during operation.

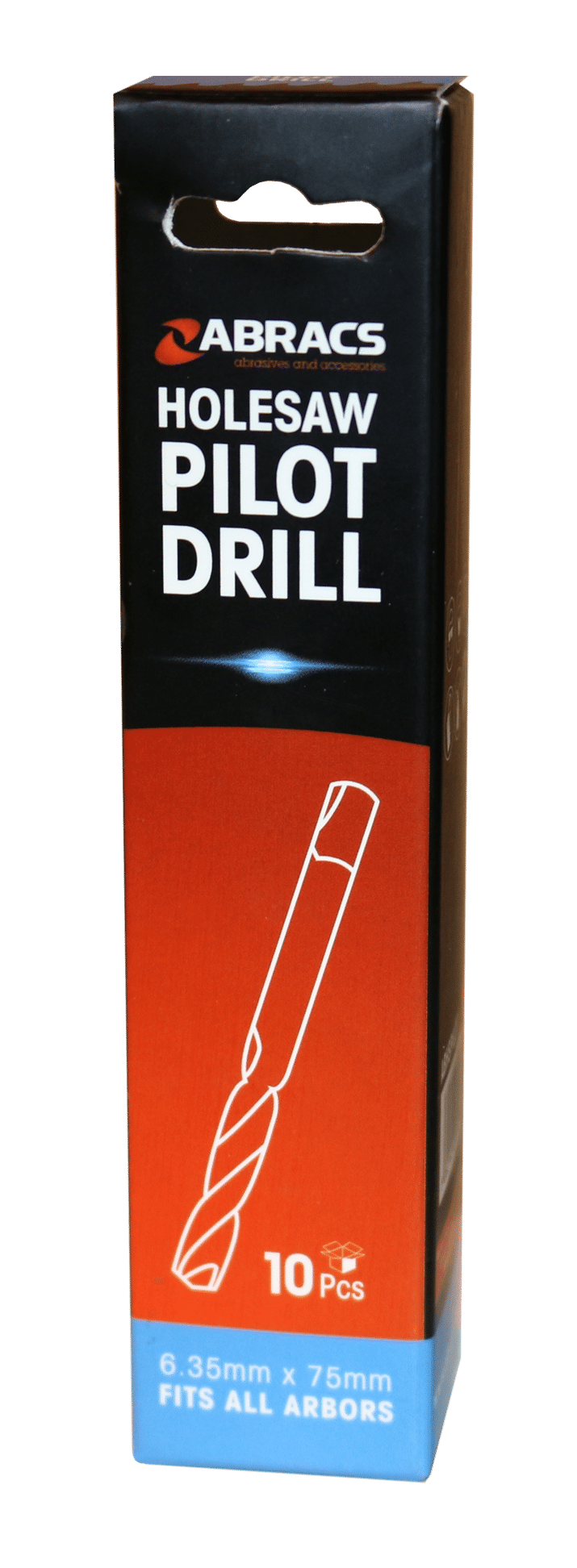

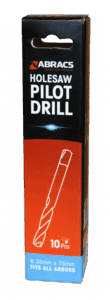

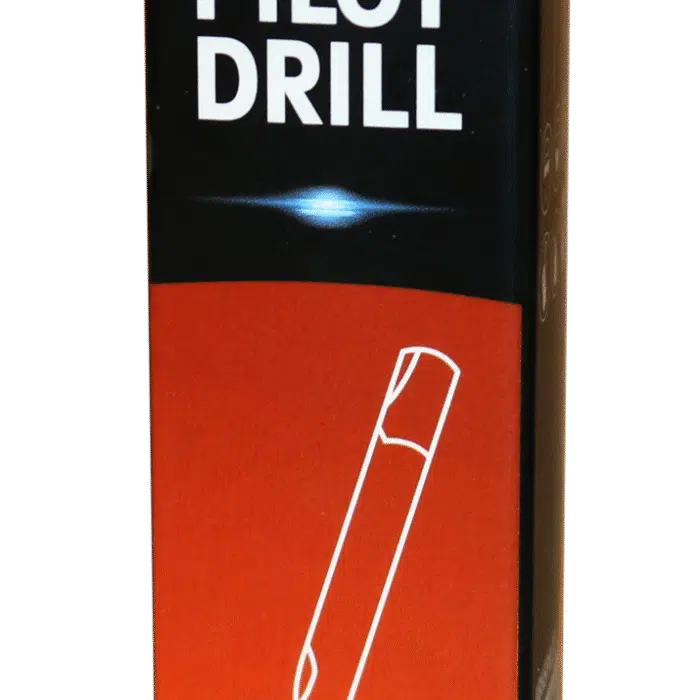

Each arbor is fitted with a central pilot drill bit, typically made from high‑speed steel (HSS), which drills a small starter hole and guides the holesaw accurately through the material. This:

• Improves accuracy and positioning of the final hole
• Reduces wander and walking on smooth surfaces
• Helps keep the cut straight and controlled

As the pilot bit wears, it can usually be removed and replaced, extending the working life of the arbor body itself. This makes Abracs arbors a cost‑effective solution for regular users such as electricians, plumbers, HVAC engineers, carpenters and general contractors.

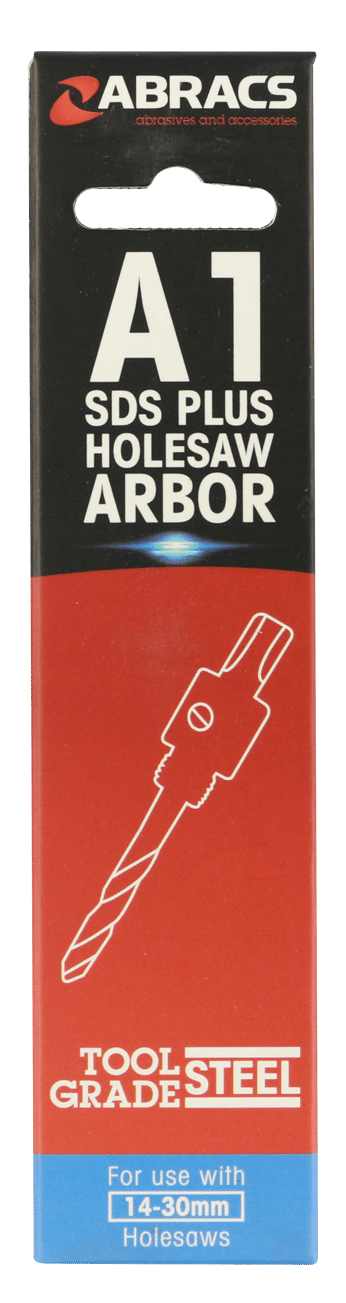

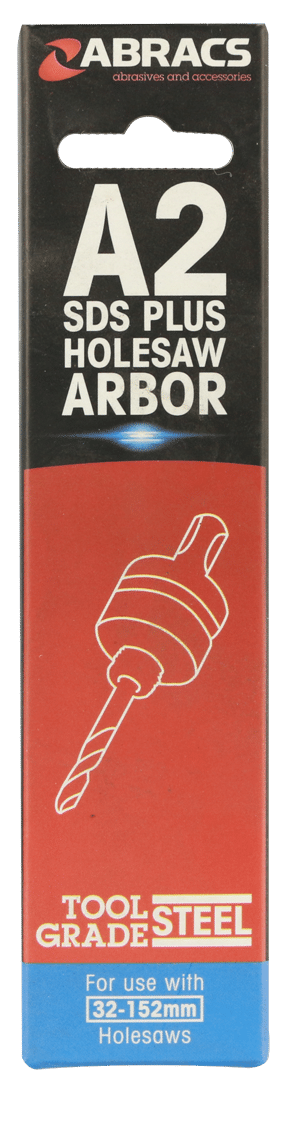

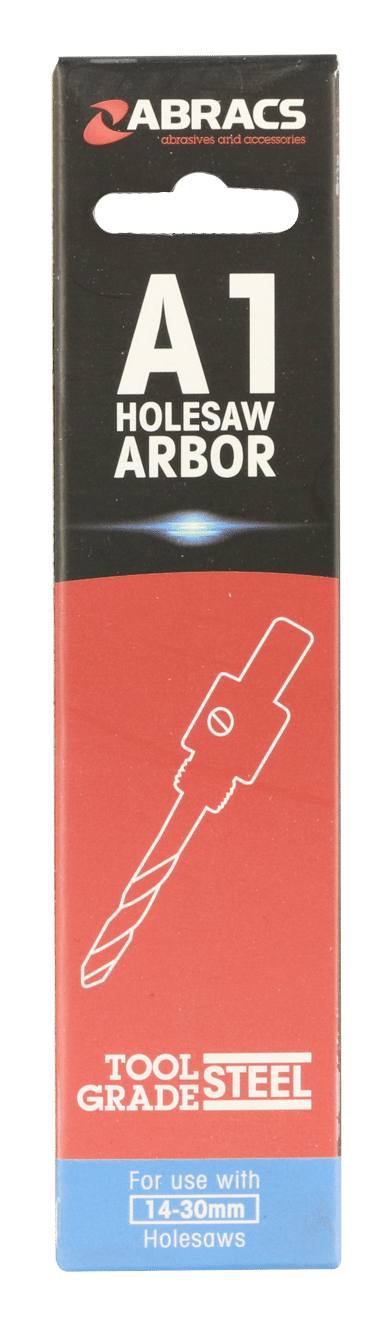

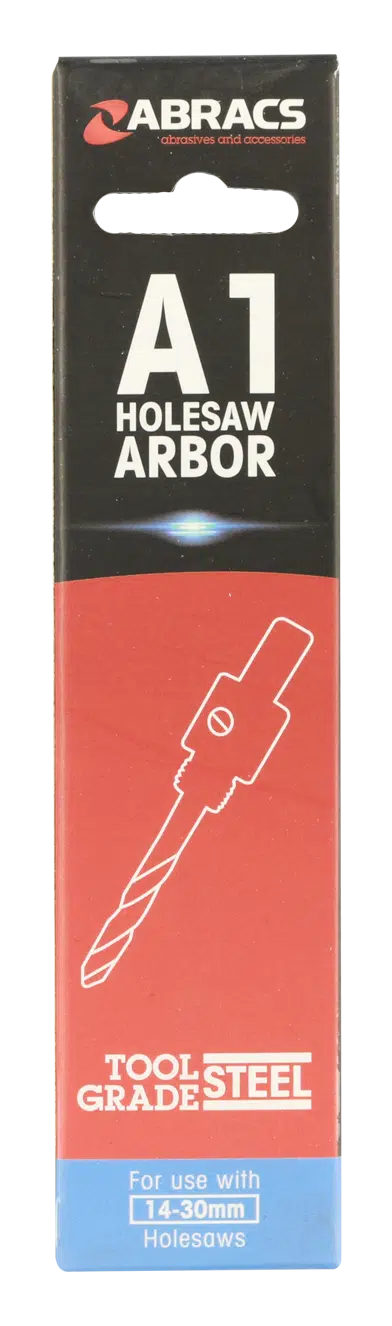

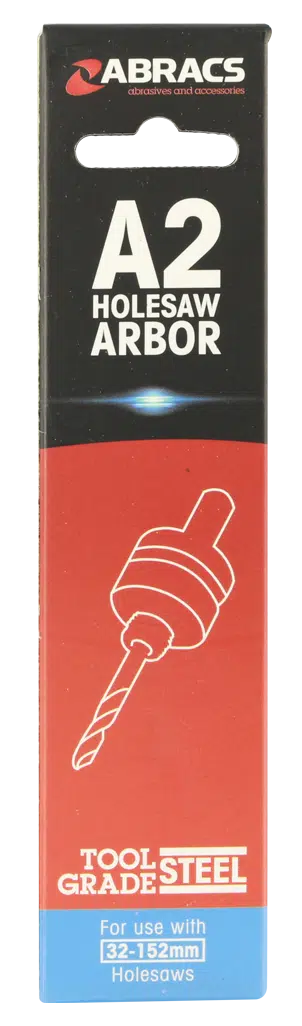

Abracs offers arbors to suit different holesaw size ranges and shank types (e.g. small/large arbors, different hex sizes), so you can match the correct arbor to your holesaw diameter and drill. Always check the specific arbor/holesaw compatibility chart or packaging for exact size ranges.

Typical Applications & Use Cases

• Electrical installations
  Using holesaw arbors with suitable holesaws to cut back box, conduit and downlight openings in plasterboard, MDF, timber and trunking.
• Plumbing & heating
  Creating pipe penetrations through timber stud walls, floors, cabinets and light‑gauge sheet metal.
• HVAC & mechanical
  Cutting holes for duct spigots, grilles and services in panel work, sheet materials and ceilings.
• Carpentry & joinery
  Fitting locks, handles, hinges and cable pass‑throughs in doors, cabinets and furniture.
• General construction & maintenance
  Versatile hole cutting in a wide variety of building materials when paired with the appropriate holesaw.

Fitting & Usage Guidance

How to Fit a Holesaw to an Abracs Arbor

1. Isolate the drill
   Disconnect power or remove the battery before fitting the arbor and holesaw.
2. Install the pilot drill bit
   If not already fitted, insert the pilot drill bit into the arbor, aligning flats or notches as required, and tighten the retaining screw or grub screw.
3. Attach the holesaw
   Screw the holesaw onto the arbor’s threaded spindle until it is fully seated. Align the drive pins (if present) with the matching holes in the saw backplate and engage them.
4. Secure the assembly
   Fully tighten by hand, then snug up using appropriate leverage if recommended by the manufacturer. Ensure the saw is firmly locked to the arbor.
5. Fit the arbor into the drill chuck
   Insert the arbor shank into the drill chuck, ensuring it is fully seated and tightly clamped.

Using the Arbor & Holesaw

1. Mark the centre of the hole
   Mark the centre point of the required hole on the workpiece.
2. Position the pilot drill
   Place the pilot drill tip on the mark, hold the drill perpendicular to the surface.
3. Start slowly
   Begin drilling at a low speed to allow the pilot drill to establish a hole and stabilise the saw.
4. Increase to working speed
   Once the saw is engaged evenly, increase speed as appropriate for the material while applying steady, moderate pressure.
5. Clear swarf/chips
   Periodically withdraw slightly to help clear chips and prevent overheating, especially in metal.

Best Practice Tips

• Always match the holesaw type (bi‑metal, carbide, etc.) and speed to the material being cut.
• Use a variable speed drill and lower RPM for metals to reduce heat and extend saw and pilot life.
• Do not force the cut – let the teeth and pilot drill do the work to avoid stalling or snapping.
• Check the pilot drill regularly and replace when dull or damaged to maintain accuracy and safety.

Key Features & Advantages

• High‑Strength Arbor Body
  Feature: Robust steel construction.
  Benefit: Withstands the torque and load of hole cutting in demanding site conditions.
• Replaceable Pilot Drill Bits
  Feature: Central pilot drills secured with screws/grub screws (variant‑dependent).
  Benefit: Allows quick replacement of worn pilots without discarding the whole arbor.
• Secure Saw Drive
  Feature: Threaded spindle and, on many variants, drive pins to engage the holesaw backplate.
  Benefit: Provides a positive drive, reducing slippage and improving cutting reliability.
• Multiple Arbor Sizes Available
  Feature: Different arbors for different holesaw diameter ranges (e.g. small/large).
  Benefit: Ensures correct fit and support for both smaller and larger diameter saws.
• Compatible with Standard Drills
  Feature: Common shank sizes suitable for most corded and cordless drills (check variant).
  Benefit: No special tool required – fits standard drill chucks used on site and in workshops.

Technical Information

• Brand: Abracs
• Product Type: Holesaw arbors & pilot drill bits
• Compatibility: Designed for Abracs bi‑metal / compatible holesaws (also suitable for many standard threaded holesaws – check before use)
• Pilot Drill Material: Typically high‑speed steel (HSS), variant‑dependent
• Shank Types: Hex / round shanks (depending on arbor model)
• Holesaw Diameter Range: Varies by arbor (e.g. small and large arbors; always check packaging/spec for exact ranges)
• Primary Applications: Hole cutting in timber, MDF, plastics, thin metals and other construction materials (with appropriate holesaw)
• Compatible Tools: Standard electric drills and some drill presses (check chuck capacity and speed range)

Abracs Holesaw Arbors & Pilot Drill Bits Frequently Asked Questions

1. Are Abracs holesaw arbors compatible with other brands of holesaws?

Abracs arbors are designed for Abracs holesaws, but they will also fit many other makes that use the same thread and drive pin pattern. Always check both the arbor and holesaw specifications, or test fit, before use.

2. How do I know which arbor size I need?

Most systems use small and large arbors to cover different diameter ranges (for example, smaller diameters on one arbor type and larger diameters on another). Refer to the Abracs arbor/holesaw compatibility chart or the product packaging to match the arbor to your holesaw size.

3. Can I replace just the pilot drill bit?

Yes. The pilot drill is usually retained with a screw or grub screw, allowing you to remove and replace it when it becomes worn or damaged. Use the correct size and type of replacement pilot recommended for your arbor.

4. What drills can I use these arbors with?

Abracs arbors are designed for use with standard electric drills (corded or cordless) that have a suitable chuck capacity and variable speed. For metals and tougher materials, a slower speed drill with good torque is recommended.

5. Why is my holesaw wandering when I start the cut?

Common causes include:

• A dull or damaged pilot drill
• Starting at too high a speed
• Not holding the drill square to the surface
• Working on a very smooth or curved surface without a small starter recess

Check the pilot drill, start slowly and keep the drill steady and perpendicular to improve accuracy.

6. Can I use these arbors in a drill press or pillar drill?

In many cases yes, provided the arbor shank fits the chuck capacity and the machine can run at an appropriate speed for the holesaw and material. Always clamp the work securely and follow the drill press manufacturer’s safety guidance.

7. Do I need lubrication when cutting metal with a holesaw?

Using a suitable cutting fluid or lubricant when cutting metal helps to reduce heat, extend tool life and improve cut quality. This benefits both the holesaw and the pilot drill.
