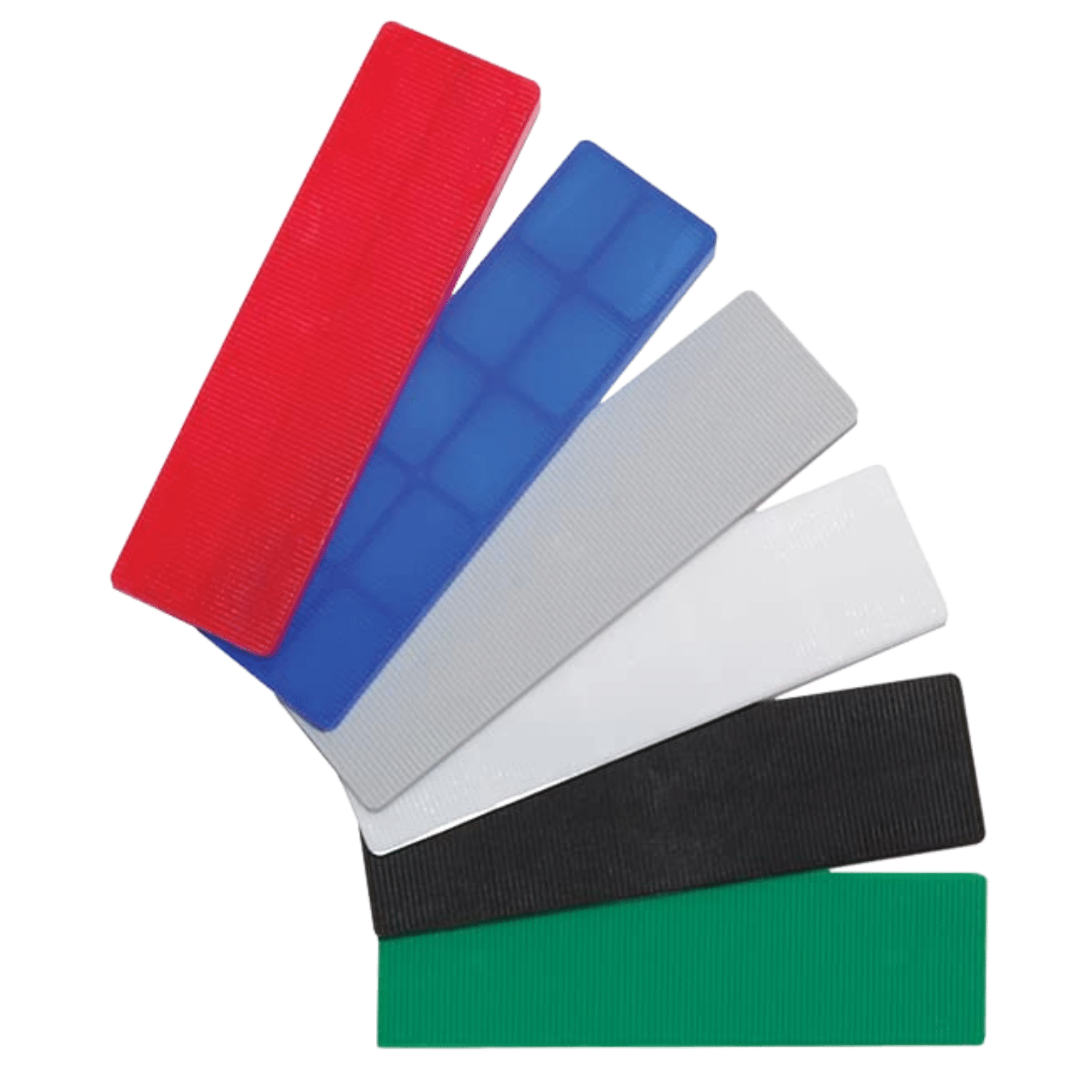

30mm Flat Plastic Packers Glazing Precision and Stability Spacers

Heavy‑duty 30mm flat plastic packers for ultra‑precise levelling, glazing and frame support – designed to deliver maximum stability on demanding window, door and construction installs.

These 30mm Flat Plastic Packers Glazing Precision and Stability Spacers are professional‑grade shims
designed for installers who need maximum stability and accuracy on heavier or wider frame systems.
The generous 30mm width gives a larger bearing surface than standard packers, making them ideal for
supporting wider uPVC, aluminium and timber frames, bi‑folds, patio doors, thresholds and curtain walling.

Manufactured from tough, high‑density plastic, these packers provide non‑compressible, consistent thickness
support under load. This helps to maintain correct frame geometry, prevent sash binding, and reduce stress on
glass units, hinges and locking hardware. When used correctly, they contribute to long‑term performance for installations
designed to meet modern British and European standards when combined with a compliant fixing and sealing system.

30mm glazing packers are an essential part of best practice installation, allowing you to:

• Set perfectly level and plumb window and door frames in irregular openings.
• Support wide or heavy frames along thresholds and head rails without point‑loading.
• Maintain even sightlines and expansion gaps around glass units.
• Bridge minor undulations in brickwork, concrete cills and structural openings.
• Use as robust spacers in joinery, drylining, partitioning and shopfitting where extra bearing area is needed.

Because they are made from stable plastic, these packers will not absorb moisture, swell or break down over time, unlike
improvised timber or cardboard wedges. Their flat, consistent profile allows for precise, repeatable packing
on every job, which is critical for high‑performance windows, doors and façade systems.

Typical users include window fitters, façade contractors, conservatory installers, carpenters, joiners,
dryliners, cladding installers and kitchen / shopfitters. On site or in the workshop, they are ideal for:

• Supporting door linings and casings.
• Levelling frame formers and structural openings.
• Packing studwork, battens and secondary steelwork.
• Levelling runs of cabinets, worktops and shelving.

Specifications

• Product type: 30mm flat plastic packers / glazing spacers
• Width: 30 mm (nominal)
• Form: Flat, non‑compressible plastic shims
• Material: High‑density, moisture‑resistant plastic
• Typical uses: Glazing packers, window and door frame support, levelling shims, structural packing, joinery and fit‑out
• Substrate compatibility: Suitable for use with uPVC, aluminium and timber frames, and on masonry, concrete, blockwork, steel and timber
• Environment: Indoor and external reveals (within a properly sealed and weathered installation)
• Performance: Designed to remain stable and non‑compressible under typical frame and glass loads when correctly supported

Key Features

• Extra‑wide 30mm footprint: Provides improved load spread under wider frames, sills and heavy units compared with narrower packers.
• Flat, uniform thickness: Ensures accurate packing for precise levelling and alignment across the full bearing area.
• Durable plastic construction: High‑density plastic resists compression, moisture, rot and degradation over time.
• Compatible with modern systems: Suitable for use with most uPVC, aluminium and timber window and door systems when installed to manufacturer guidance.
• Multi‑trade, multi‑purpose: Ideal for glazing, carpentry, joinery, drylining, cladding, flooring and shopfitting applications.
• Easy to cut and stack: Can be trimmed with a knife or snips and combined to achieve the exact packing height required.

30mm Flat Plastic Packers Frequently Asked Questions

1. What are 30mm flat plastic packers used for?

30mm flat plastic packers are used anywhere you need a stable, precise and wider support area than standard
packers offer. Common uses include:

• Supporting wide uPVC and aluminium window and door frames.
• Packing beneath thresholds, bi‑fold doors and patio doors.
• Levelling door linings, timber frames and structural openings.
• Backing curtain walling and façade systems at key load points.
• Shimming stud partitions, cladding rails, cabinets and worktops.

2. Why choose 30mm packers instead of narrower glazing packers?

The 30mm width gives you:

• Greater load spread under heavier or wider frames, helping to reduce point‑loading and potential cracking.
• Better support for thresholds and sills where a wider bearing area is beneficial.
• Improved stability on substrates with minor irregularities, as more of the packer is in contact with the surface.

They are particularly useful on larger doors, commercial systems and anywhere that requires a more generous bearing footprint.

3. Are these 30mm plastic packers suitable for uPVC, aluminium and timber frames?

Yes. These packers are commonly used with all three frame types. They are suitable for:

• uPVC windows and doors – under frame fixing points and thresholds.
• Aluminium systems – curtain walling, shopfronts and patio / sliding door frames.
• Timber frames – door linings, casings and timber window frames.

Always follow the specific installation guidance provided by the frame or system manufacturer regarding packer locations, thicknesses and fixing methods.

4. Can these packers be used externally or in damp reveals?

The high‑density plastic is moisture‑resistant and rot‑proof, so these packers are suitable for use in
external window and door reveals, conservatories and other damp‑prone areas. They should always be used as
part of a properly sealed installation with appropriate DPCs, sealants and weatherproofing to prevent water tracking into
the building fabric.

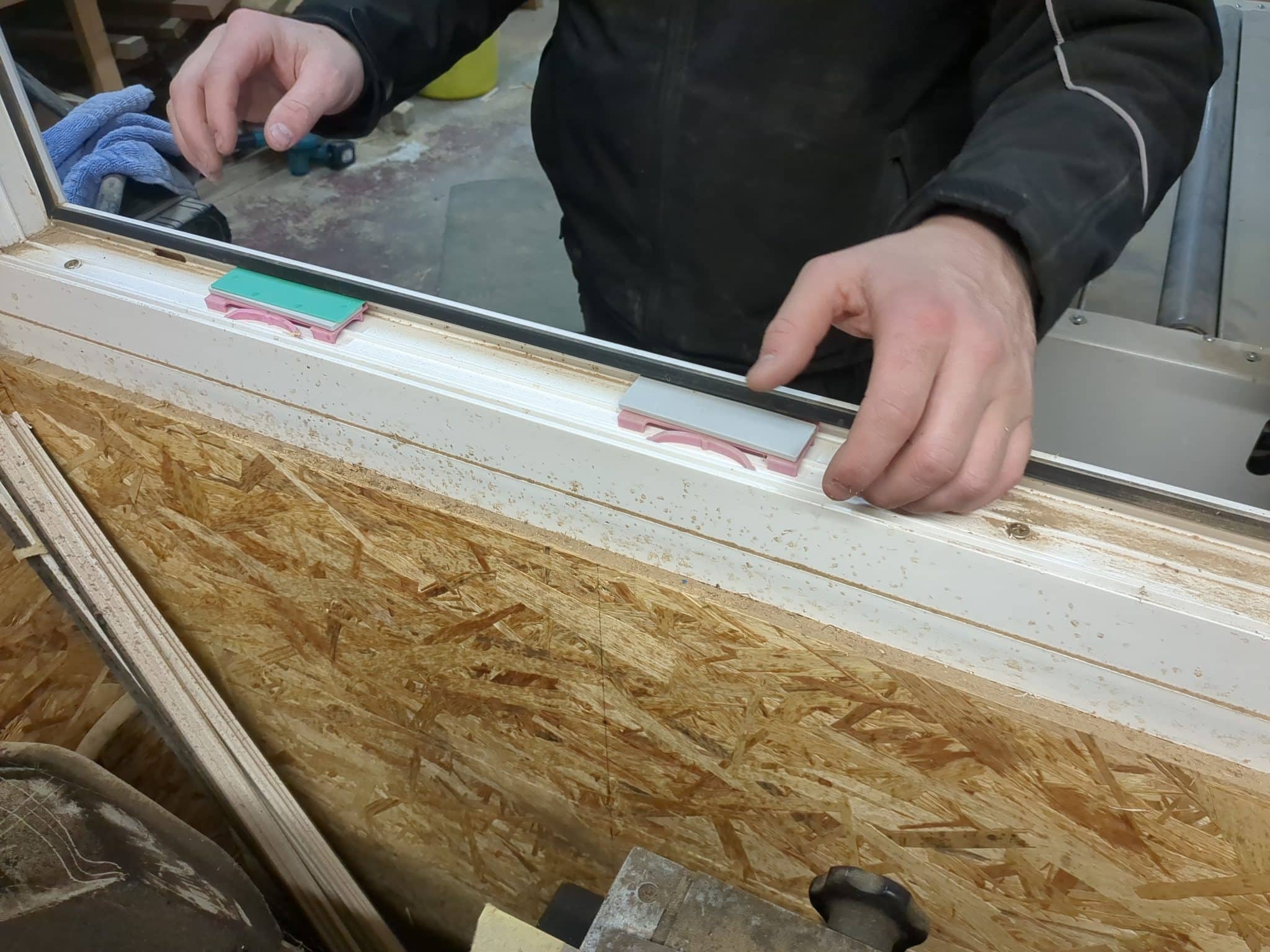

5. How should I position and stack 30mm glazing packers correctly?

In glazing and frame installation:

• Place packers under key load points – corners, mid‑spans, hinge and lock positions.
• Ensure the packer is in full contact with both the substrate and the frame, not just on an edge.
• Use combinations of different thicknesses (e.g. 1 mm, 2 mm, 3 mm, 5 mm, 10 mm) stacked within the 30mm footprint to achieve the exact height.
• Avoid creating isolated point loads that could stress the frame or glass; spread the support as evenly as practicable.

After fixing the frame, always re‑check plumb, level and operation, and adjust packing if required before final sealing.

Common Uses & Installation Tips

Typical Applications

• Levelling and supporting wider window and door frames in brick, block or timber openings.
• Packing beneath thresholds, cills and patio / bi‑fold door tracks.
• Setting out curtain wall mullions, transoms and frame formers.
• Shimming stud partitions, timber battens and cladding support rails.
• Levelling and packing kitchen units, wardrobes, counters and built‑in furniture.

Installation Tips

1. Prepare the substrate: Clean cills, reveals and supports; remove loose debris, dust and mortar snots.
2. Dry fit the frame or component: Offer it into position and check plumb, level and square with a spirit level and tape.
3. Position 30mm packers: Place packers at key load points (corners, mid‑points, hinge / lock zones) ensuring full bearing contact.
4. Adjust and stack: Combine different packer thicknesses within the 30mm footprint until the correct height and alignment are achieved.
5. Fix through or beside packers: Use appropriate frame fixings or anchors, tightening evenly to avoid distorting the frame.
6. Re‑check and trim: Confirm operation and alignment; trim any visible protruding packers carefully with a knife or snips before sealing.

For glazing and external joinery, always follow manufacturer installation instructions and local Building Regulations to ensure compliance and performance.
